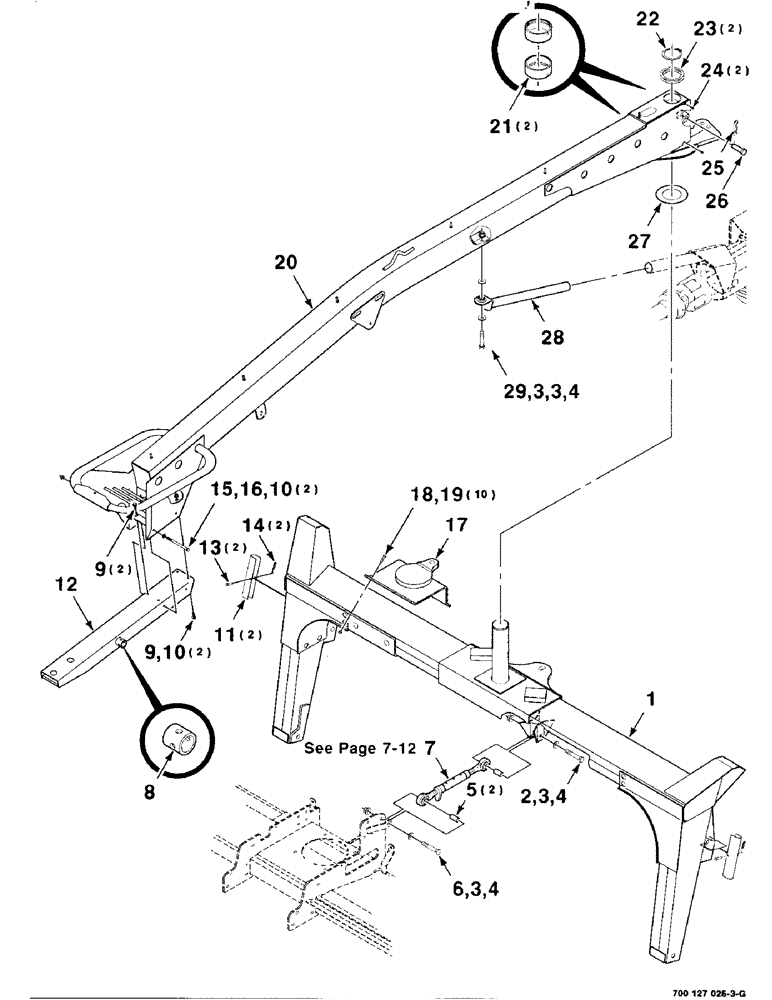

Запчасти Case IH 8312 (7-10) - TONGUE AND FRAME ASSEMBLY, STANDARD (39) - FRAMES AND BALLASTING

1

700130553

FRAME

MAINFRAME WA

1шт.

2

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

3

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

4

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

3шт.

5

6108112

BUSHING

SPACER

2шт.

6

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

3/4-10 X 3-3/4 C

1шт.

7

700127271

LINK

ASSEMBLY - top

1шт.

8

6227391

TUBE,2" OD, 1.88" Length

- jack

1шт.

9

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

11

6251292

STOP

- safety

2шт.

12

700127313

HITCH ASSY, TRAILER

HITCH WA (includes item 8)

1шт.

13

63644

CLEVIS PIN

3/8 X 2-1/8 CLEVIS PIN

2шт.

14

T54573

PIN

.120 WIRE HAIR PIN COTTER

2шт.

15

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

.5 X 7 UNC GR5 YZD

2шт.

16

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

17

700115148

LUG

WA

1шт.

18

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

19

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

10шт.

20

700127312

TOW BAR

TONGUE WA (includes item 21) (S.N. CFH0094236 thru CFH0106223) superseded by 700130620, 700127313, 700710984, 873547, 705541 & 704742

1шт.

700130620

TOW BAR

TONGUE WA (includes item 21) (S.N. CFH0106224 and later)

1шт.

21

7852379

BRONZE BUSHING,102.06mm ID x 114.4mm OD x 44.45mm L

- bronze

2шт.

22

700706827

RING, SNAP

RING - retaining

1шт.

23

700115299

WASHER

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

25

062455

PIN, SPLIT (COTTER)

.178 HAIRPIN COTTER

1шт.

26

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

1 X 4 CLEVIS PIN

1шт.

27

700115300

WASHER

1шт.

28

700127362

SLIDE

WA

1шт.

29

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.
