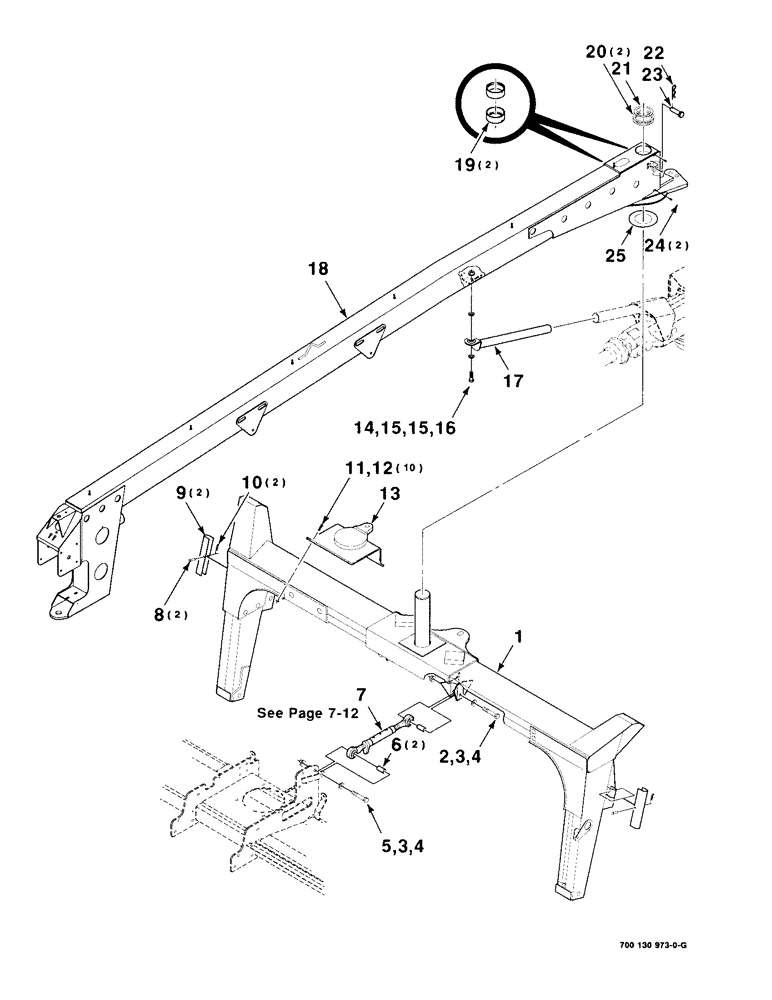

Запчасти Case IH 8312 (7-08) - TONGUE AND FRAME ASSEMBLY, SWIVEL (39) - FRAMES AND BALLASTING

1

700130553

FRAME

MAINFRAME WA

1шт.

2

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

1шт.

3

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

4

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

5

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

3/4-10 X 3-3/4 C

1шт.

6

6108112

BUSHING

SPACER

2шт.

7

700127271

LINK

ASSEMBLY - top

1шт.

8

63644

CLEVIS PIN

3/8 X 2-1/8 CLEVIS PIN

2шт.

9

6251292

STOP

- safety

2шт.

10

T54573

PIN

.120 WIRE HAIR PIN COTTER

2шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

12

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

10шт.

13

700115148

LUG

WA

1шт.

14

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

15

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

16

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

17

700127362

SLIDE

WA

1шт.

18

700130986

TOW BAR

TONGUE WA (includes item 23)

1шт.

19

7852379

BRONZE BUSHING,102.06mm ID x 114.4mm OD x 44.45mm L

- bronze

2шт.

20

700115299

WASHER

MACHINERY BUSHING - SPL, 5 OD

2шт.

21

700706827

RING, SNAP

RETAINING RING

1шт.

22

062455

PIN, SPLIT (COTTER)

.178 COTTER PIN

1шт.

23

439-11668

HEADED PIN,25.4mm OD x 107.95mm L

1 X 4 CLEVIS PIN

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

25

700115300

WASHER

MACHINERY BUSHING - SPL, 6-3/4 OD

1шт.
