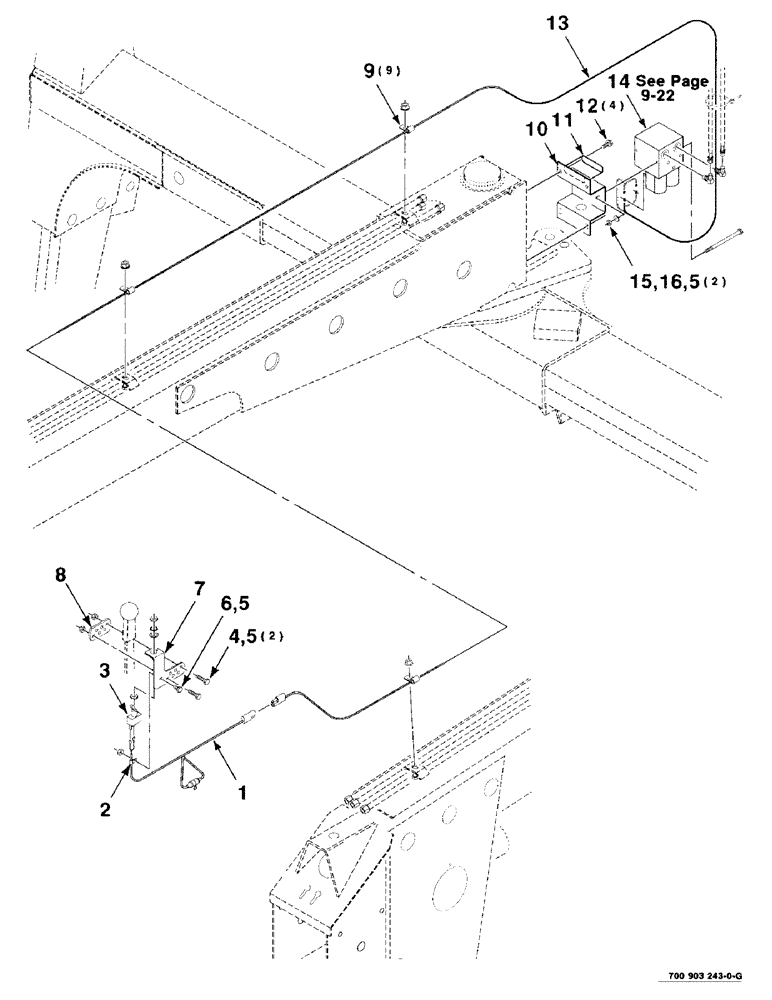

Запчасти Case IH 8312 (9-26) - KIT- HYDRAULIC TILT, ELECTRICAL, HK10810 HYDRAULIC HEADER TILT KIT TO BE ORDER THRU WHOLEGOODS ONL Y (35) - HYDRAULIC SYSTEMS

HK10810

HYDRAULIC HEADER TILT KIT

1шт.

1

700713584

HARNESS

- wire, tractor

1шт.

2

751321

CLAMP

1шт.

3

700707449

SWITCH

- toggle

1шт.

4

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

2шт.

5

425-104

NUT,1/4"-20, Cl 5

5шт.

6

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

7

700127039

SUPPORT

- switch

1шт.

8

700127040

STRAP

1шт.

9

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

9шт.

10

700127036

SUPPORT

- valve

1шт.

11

700706862

DECAL

- roading pin

1шт.

12

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

4шт.

13

700713585

HARNESS

- wire, implement

1шт.

14

700713583

VALVE

1шт.

15

413-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

2шт.

16

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.
