(9-24) - KIT- HYDRAULIC TILT, ELECTRICAL, HK10913 HYDRAULIC HEADER TILT KIT TO BE ORDER THRU WHOLEGOODS ONLY

Запчасти Case IH 8312 (9-24) - KIT- HYDRAULIC TILT, ELECTRICAL, HK10913 HYDRAULIC HEADER TILT KIT TO BE ORDER THRU WHOLEGOODS ONLY (35) - HYDRAULIC SYSTEMS

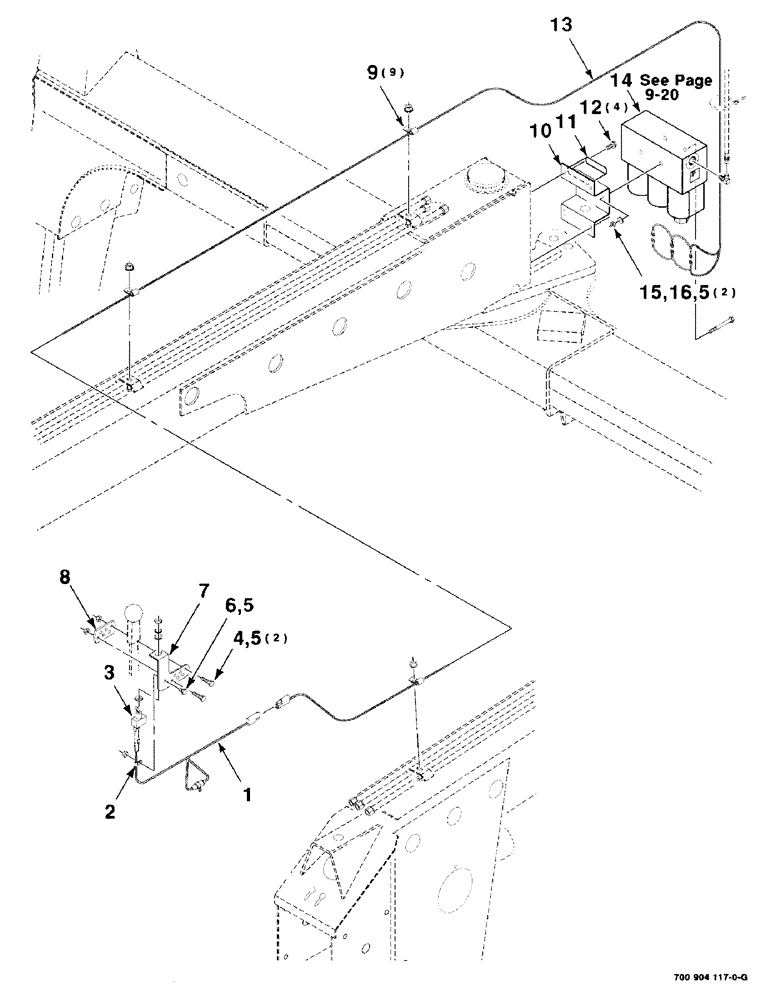

Схема запчастей Case IH 8312 - (9-24) - KIT- HYDRAULIC TILT, ELECTRICAL, HK10913 HYDRAULIC HEADER TILT KIT TO BE ORDER THRU WHOLEGOODS ONLY (35) - HYDRAULIC SYSTEMS
2
3
5
14
12
16
15
9
1
7
8
11
6
10
5
5
13
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK10913

HYDRAULIC HEADER TILT KIT

1шт.

1

700713584

HARNESS

- wire, tractor

1шт.

2

751321

CLAMP

1шт.

3

700707449

SWITCH

- toggle

1шт.

4

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

1шт.

5

425-104

NUT,1/4"-20, Cl 5

5шт.

6

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

7

700127039

SUPPORT

- switch

1шт.

8

700127040

STRAP

1шт.

9

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

9шт.

10

700127036

SUPPORT

- valve

1шт.

11

700706862

DECAL

- roading pin

1шт.

12

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

4шт.

13

700715942

HARNESS

- wire, implement

1шт.

14

700715903

VALVE

1шт.

15

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

2шт.

16

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.
