(9-20) - HYDRAULIC CONTROL VALVE ASSEMBLY, DELTA, 700715903 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE

Запчасти Case IH 8312 (9-20) - HYDRAULIC CONTROL VALVE ASSEMBLY, DELTA, 700715903 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE (35) - HYDRAULIC SYSTEMS

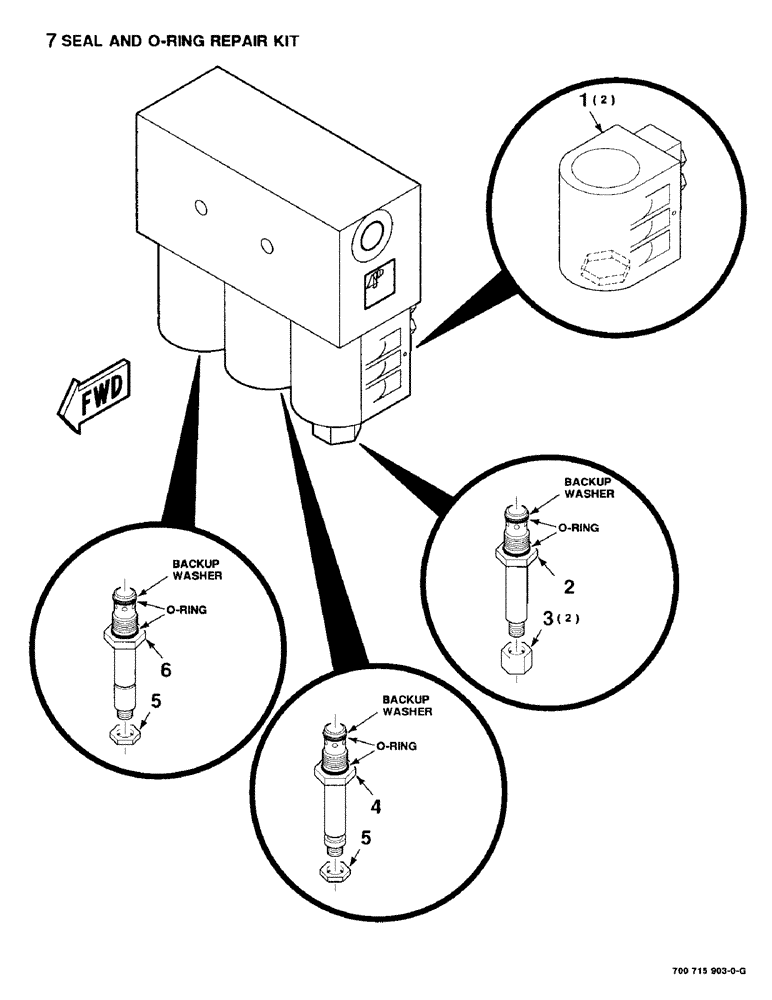

Схема запчастей Case IH 8312 - (9-20) - HYDRAULIC CONTROL VALVE ASSEMBLY, DELTA, 700715903 HYDRAULIC CONTROL VALVE ASSEMBLY COMPLETE (35) - HYDRAULIC SYSTEMS
6
5
3
5
1
7
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700715903

VALVE

HYDRAULIC CONTROL VALVE COMPLETE

2шт.

1

700712921

COIL

- 12VDC DP encap

2шт.

2

700715928

VALVE POPPET

VALVE - BIE directional

1шт.

3

700712824

NUT

HEX NUT

2шт.

4

700714893

SPOOL

VALVE

1шт.

5

700712821

NUT

HEX NUT

2шт.

6

700712822

CARTRIDGE

POPPET VALVE

1шт.

7

700715929

SEAL KIT

SEAL AND O-RING REPAIR KIT

1шт.
