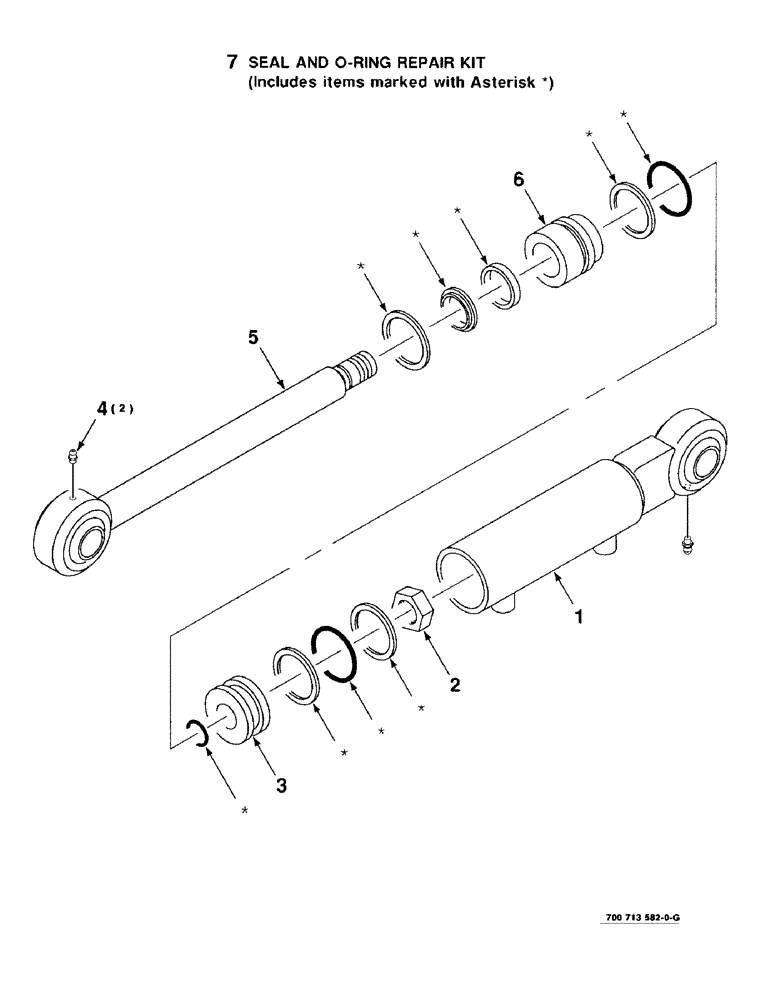

Запчасти Case IH 8312 (9-18) - HYDRAULIC CYLINDER ASSEMBLY, 700713582 HYDRAULIC CYLINDER COMPLETE, 2" BORE X 3-1/2" STROKE (35) - HYDRAULIC SYSTEMS

700713582

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2" bore by 3-1/2" stroke)

1шт.

1

700713596

BODY

CYLINDER BODY

1шт.

2

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

3

700707419

PISTON

1шт.

4

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, 3/16" x .55" lg, Drive

2шт.

5

700713597

ROD

PISTON - rod

1шт.

6

700711112

GUIDE

- rod

1шт.

7

700713595

SEAL KIT

SEAL AND O-RING REPAIR KIT Includes: Ref. marked with asterisks on art

1шт.
