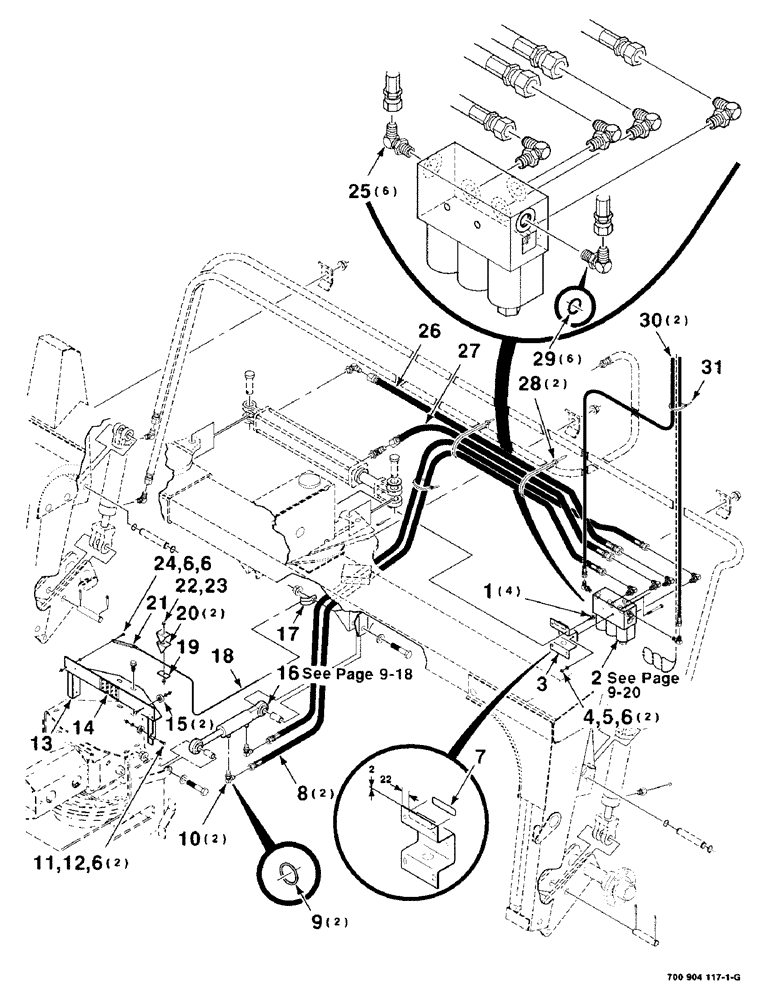

Запчасти Case IH 8312 (9-14) - KIT - HYDRAULIC HEADER TILT, HK10913 HYDRAULIC HEADER TILT KIT TO BE ORDERED THRU WHOLEGOODS ONLY (35) - HYDRAULIC SYSTEMS

496-11028

WASHER,9/32" x 5/8" x .065, HDN

HYDRAULIC HEADER TILT KIT

2шт.

1

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

4шт.

2

700715903

VALVE

1шт.

3

700127036

SUPPORT

- valve

1шт.

4

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

2шт.

5

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

6

425-104

NUT,1/4"-20, Cl 5

6шт.

7

700706862

DECAL

- roading pin

1шт.

8

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

6.35 mm ID x 1525.00 mm

2шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

10

700707498

ELBOW

FITTING - elbow (includes item 9)

2шт.

11

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

2шт.

12

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

13

700127032

SUPPORT

WA - gage

1шт.

14

700713580

DECAL

- gage

1шт.

15

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

BEARING

2шт.

16

700713582

CYLINDER

- hydraulic

1шт.

17

700127037

ANCHOR

1шт.

18

700713581

CABLE

ASSEMBLY

1шт.

19

700122988

LARGE PLATE

PLATE

1шт.

20

700127041

DIPSTICK

INDICATOR

2шт.

21

7758915

SPRING

- extension

1шт.

22

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

1шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (includes item 29)

6шт.

26

7796287

HOSE

- hydraulic

1шт.

27

8742447

HOSE

- hydraulic

1шт.

28

7021728

STRAP

TIE - cable

2шт.

29

738468

O-RING

6шт.

30

7795487

HOSE

- hydraulic

2шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
