(8-10) - HYDRAULIC CYLINDER ASSY., HEADER LIFT,RIGHT, 700712015 HYDR. CYL. COMPLETE, 2-3/4" BORE X 8" STROKE

Запчасти Case IH 8312 (8-10) - HYDRAULIC CYLINDER ASSY., HEADER LIFT,RIGHT, 700712015 HYDR. CYL. COMPLETE, 2-3/4" BORE X 8" STROKE (35) - HYDRAULIC SYSTEMS

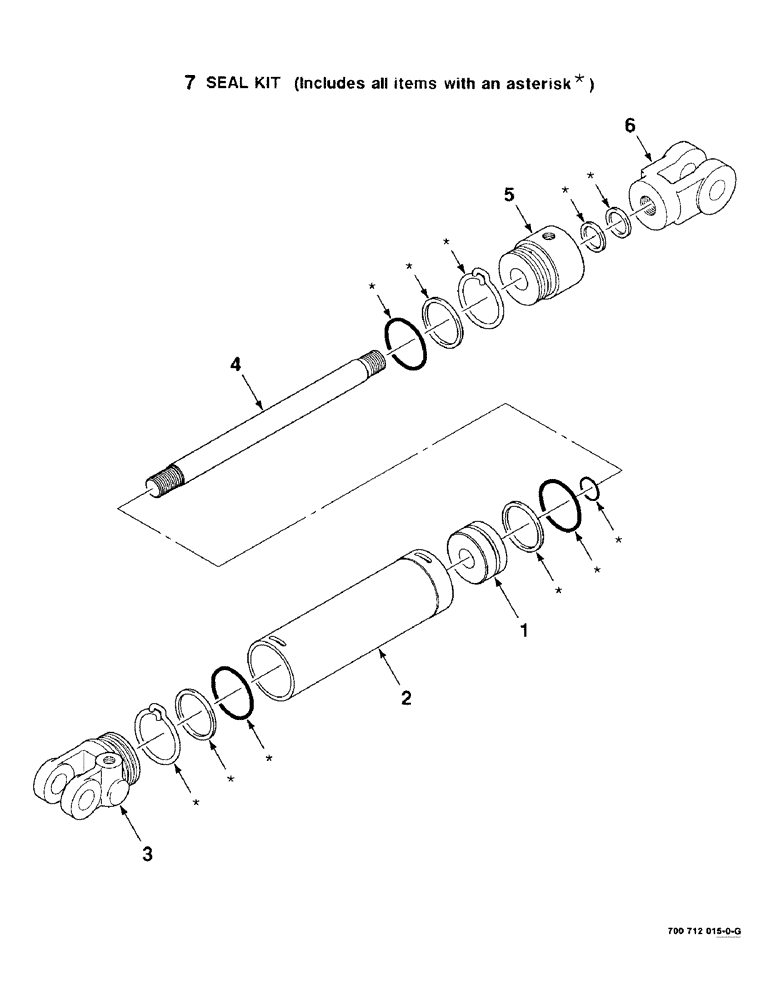

Схема запчастей Case IH 8312 - (8-10) - HYDRAULIC CYLINDER ASSY., HEADER LIFT,RIGHT, 700712015 HYDR. CYL. COMPLETE, 2-3/4" BORE X 8" STROKE (35) - HYDRAULIC SYSTEMS
4
2
3
5
7
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712015

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2-3/4" bore x 8" stroke)

1шт.

1

700710241

PISTON

- cylinder

1шт.

2

700712100

SLEEVE CYLINDER

BARREL

1шт.

3

700710240

HEAD

- cylinder

1шт.

4

102907A1

ROD

- piston

1шт.

5

700712119

BEARING

- cylinder rod

1шт.

6

102908A1

END

CLEVIS - rod end

1шт.

7

700710242

KIT

SEAL KIT

1шт.
