(8-08) - HYDRAULIC CYLINDER ASSY. HEADER LIFT, LEFT, 700712017 HYDR. CYL. COMPLETE, 2-1/2" BORE X 8" STROKE

Запчасти Case IH 8312 (8-08) - HYDRAULIC CYLINDER ASSY. HEADER LIFT, LEFT, 700712017 HYDR. CYL. COMPLETE, 2-1/2" BORE X 8" STROKE (35) - HYDRAULIC SYSTEMS

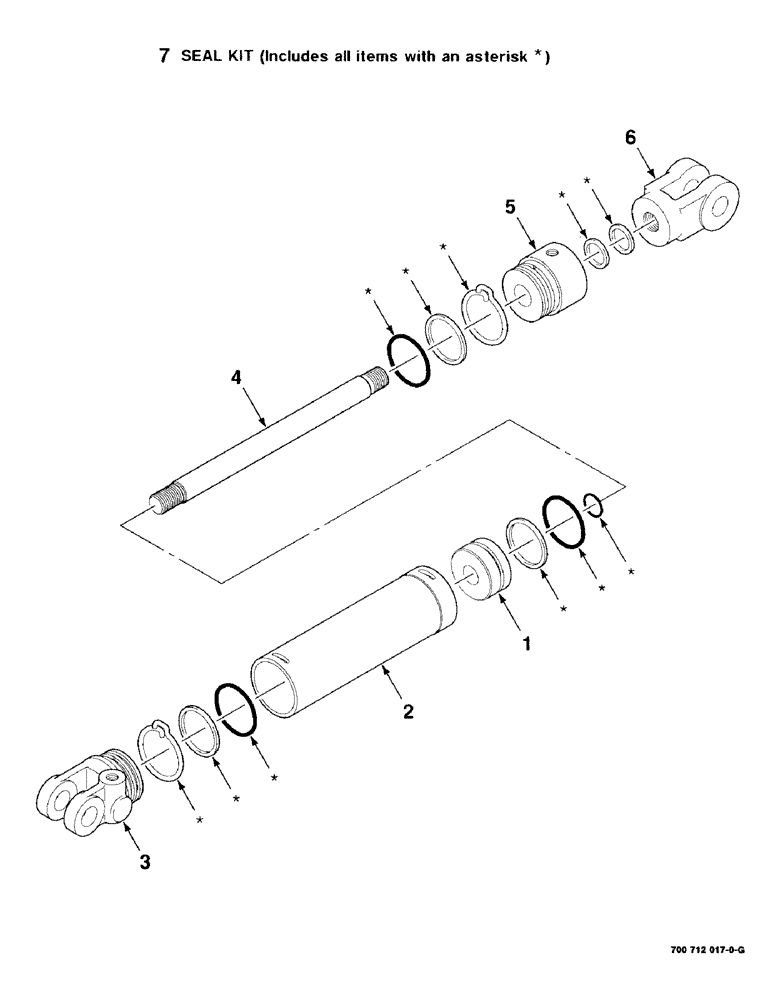

Схема запчастей Case IH 8312 - (8-08) - HYDRAULIC CYLINDER ASSY. HEADER LIFT, LEFT, 700712017 HYDR. CYL. COMPLETE, 2-1/2" BORE X 8" STROKE (35) - HYDRAULIC SYSTEMS
2
4
6
1
7
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712017

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2-1/2" bore x 8" stroke)

1шт.

1

102905A1

PISTON

- cylinder

1шт.

2

102906A1

TUBE

BARREL

1шт.

3

700704894

CYLINDER HEAD

HEAD - cylinder

1шт.

4

102907A1

ROD

- piston

1шт.

5

102909A1

BEARING

- cylinder rod

1шт.

6

102908A1

END

CLEVIS - rod end

1шт.

7

H673838

SEAL

SEAL KIT

1шт.

Выбрано товаров: 8
