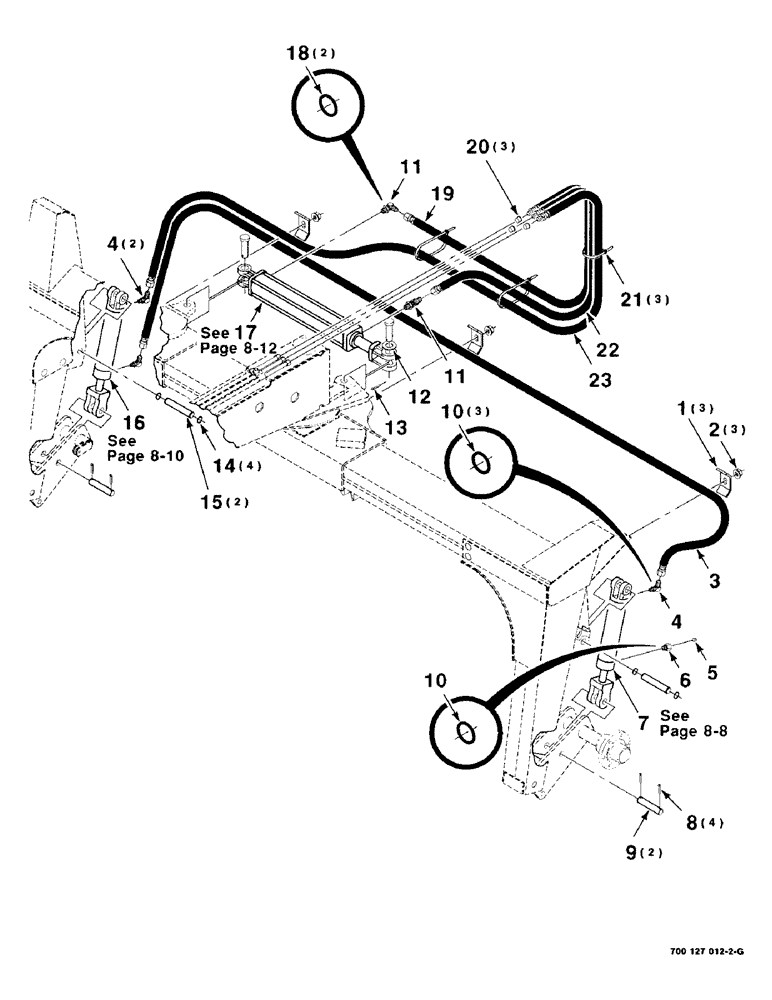

Запчасти Case IH 8312 (8-06) - HYDRAULIC ASSEMBLY, REAR (35) - HYDRAULIC SYSTEMS

1

6246995

CLAMP

3шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

3

700711870

HYDRAULIC HOSE,9.65 mm ID x 3950.00 mm, SAE 100R1

9.65 mm ID x 3950.00 mm, SAE 100R1

1шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (includes item 10)

3шт.

5

700704639

PLUG

- vent

1шт.

6

7746985

ROD, CONNECTING

REDUCER (includes item 10)

1шт.

7

700712017

CYLINDER

- hydraulic (slave)

1шт.

8

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

9

700127281

PIN

- cylinder, lower

2шт.

10

738468

O-RING

4шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

(Incl. item 15) 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

2шт.

12

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

1шт.

13

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

1шт.

14

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

4шт.

15

700118057

PIN

- cylinder, upper

2шт.

16

700712015

CYLINDER

- hydraulic (master)

1шт.

17

700706828

CYLINDER

- hydraulic

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

19

7795362

HOSE

- hydraulic

1шт.

20

218-754

CAP,37 Degree, 9/16"-18

3шт.

21

306132C1

CABLE TIE,14.5" L

TIE - nylon 14 in

3шт.

22

7796204

HOSE

- hydraulic

1шт.

23

700711862

HYDRAULIC HOSE,9.65 mm ID x 2400.00 mm, SAE 100R1

9.65 mm ID x 2400.00 mm, SAE 100R1

1шт.
