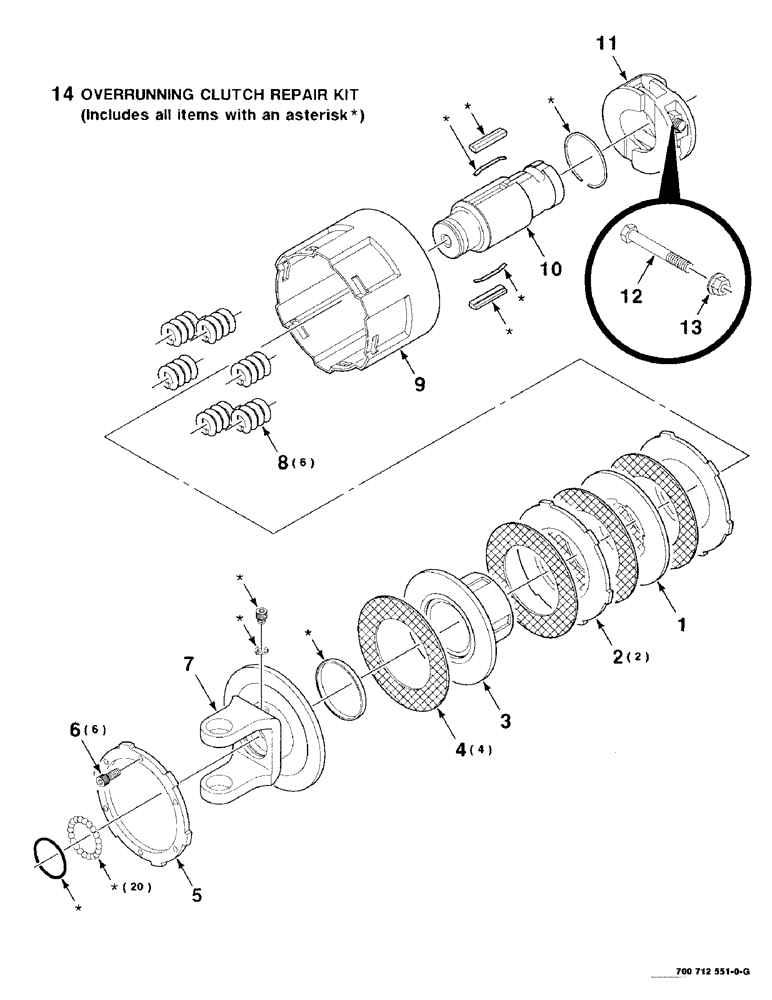

Запчасти Case IH 8312 (2-12) - OVERRUNNING FRICTION CLUTCH ASSEMBLY, 700712551 OVERRUNNING FRICTION CLUTCH COMPLETE (31) - IMPLEMENT POWER TAKE OFF

700712551

CLUTCH

OVERRUNNING CLUTCH COMPLETE

1шт.

1

700712559

LARGE PLATE

PLATE - inner

1шт.

2

700712560

LARGE PLATE

PLATE - outer

2шт.

3

700712558

HUB

FRICTION CLUTCH OUTER HUB

1шт.

4

700712569

DISC

FRICTION DISC

4шт.

5

700712555

OIL SEAL

LOCKING RING

1шт.

6

700712541

HEX SOC SCREW

5/16-18 X 7/8 HSHCS

6шт.

7

700712556

FORK

YOKE AND PLATE

1шт.

8

700712553

SPRING

- compression

6шт.

9

700712552

HOUSING

ASSEMBLY

1шт.

10

700712565

HUB

INNER DRIVE HUB AND EXTENSION

1шт.

11

700712475

CLAMP

HUB - fitting (includes items 12 & 13)

1шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

14

700712633

PACKAGE, REPAIR

OVERRUNNING CLUTCH REPAIR KIT

1шт.
