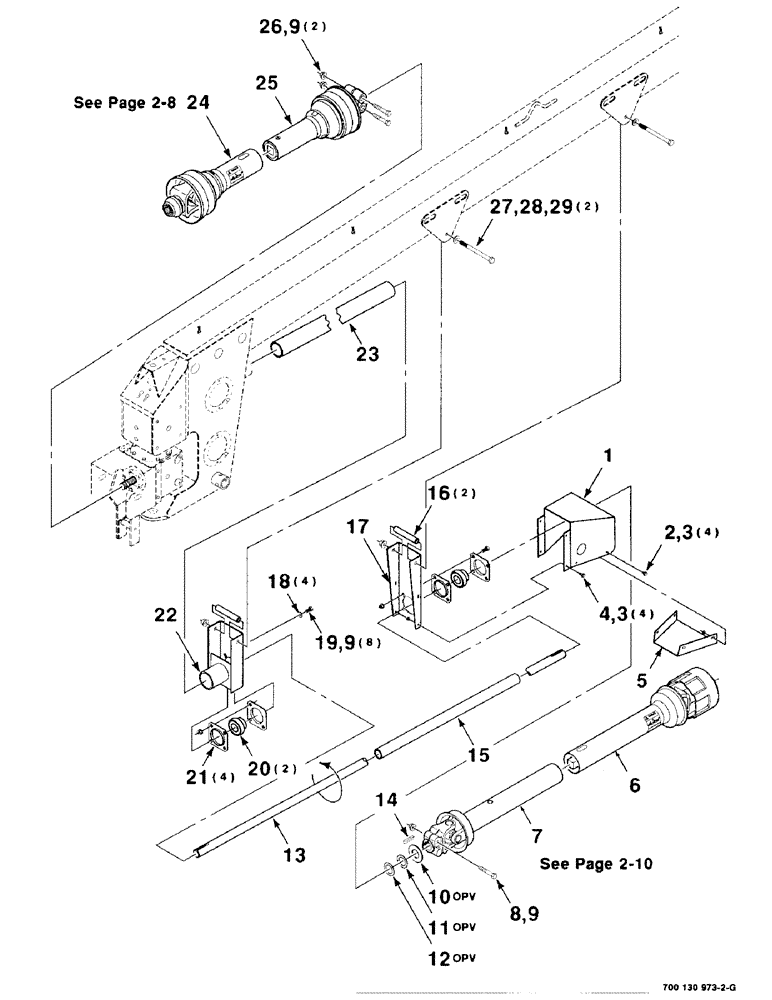

Запчасти Case IH 8312 (2-04) - TONGUE DRIVE ASSEMBLY, SWIVEL (31) - IMPLEMENT POWER TAKE OFF

1

700127352

SHIELD

- rear

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

5

700129998

SHIELD

- bottom

1шт.

6

700713851

PTO

SLIPJOINT ASSEMBLY - male half

1шт.

7

700713852

PTO

SLIPJOINT ASSEMBLY - female half

1шт.

8

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

11шт.

10

740522

WASHER

1-1/2 X 10 GAUGE WRMB

1шт.

11

NLS

NO LONGER SERVICED

1-1/2 X 14 GAUGE NRMB

1шт.

12

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

1шт.

13

700130988

SHAFT

- drive

1шт.

14

Q55

KEY,3/8" Sq x 2", Par

3/8 X 3/8 X 2 KEY

1шт.

15

700130990

TUBE

- shield

1шт.

16

700116056

SPACER

2шт.

17

700130991

SUPPORT

- bearing, rear

1шт.

18

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

19

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

20

663559R91

BEARING, BALL,1.5" ID

BEARING - spherical

2шт.

21

1307583C1

FLANGED BEARING

- bearing

4шт.

22

700130495

SUPPORT

WA - bearing, front

1шт.

23

700130506

PIPE

- shield

1шт.

24

700715643

PTO

U-JOINT ASSEMBLY - tractor half

1шт.

25

700715647

PTO

U-JOINT ASSEMBLY - implement half

1шт.

26

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

2шт.

27

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

5/8-11 X 7-1/2 C

2шт.

28

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

29

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.
