Запчасти Case IH 8312 (2-02) - TONGUE DRIVE ASSEMBLY, STANDARD (31) - IMPLEMENT POWER TAKE OFF

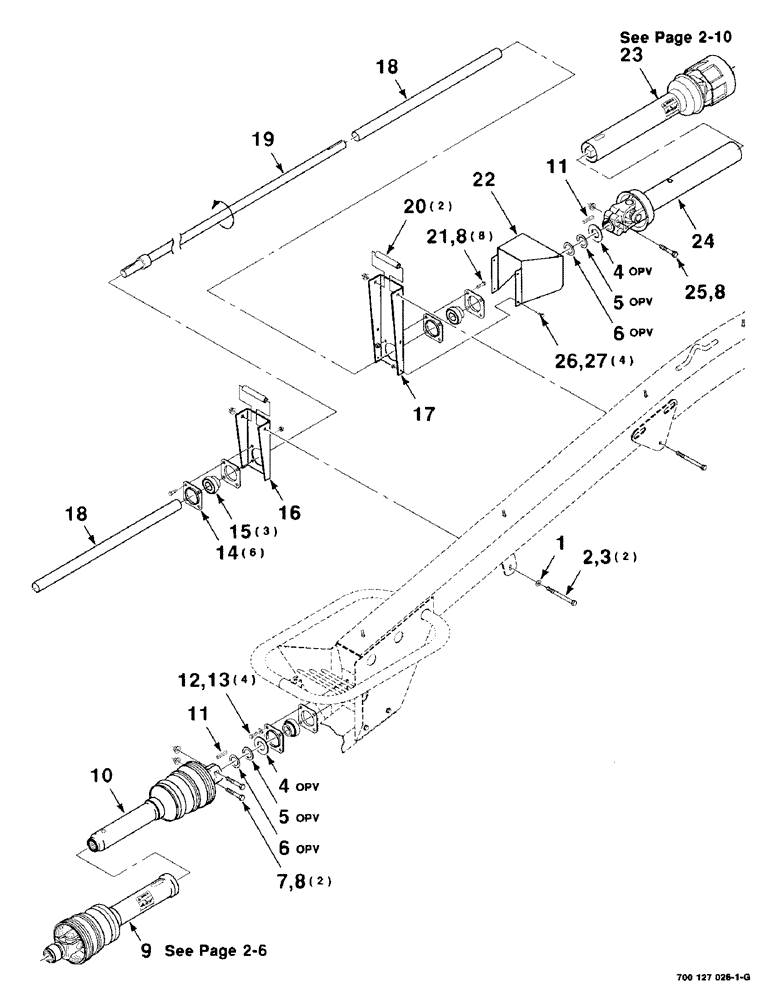

Схема запчастей Case IH 8312 - (2-02) - TONGUE DRIVE ASSEMBLY, STANDARD (31) - IMPLEMENT POWER TAKE OFF
10
11
18
15
12
26
23
1
20
19
4
7
2
8
5
6
18
25
14
8
4
6
17
5
27
16
8
9
24
11
21
22
3
13

Артикул

Название

Примечание

Количество

1

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

2

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

5/8-11 X 7-1/2 C

2шт.

3

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

4

740522

WASHER

1-1/2 X 10 GAUGE WRMB

2шт.

5

52282

BUSHING

1-1/2 X 14 GAUGE NRMB

2шт.

6

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

2шт.

7

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

2шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

11шт.

9

700712572

PTO

U-JOINT ASSEMBLY - tractor half 1000RPM

1шт.

10

700712580

PTO

U-JOINT ASSEMBLY - implement half

1шт.

11

Q55

KEY,3/8" Sq x 2", Par

3/8 X 3/8 X 2 KEY

2шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

13

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

14

1307583C1

FLANGED BEARING

6шт.

15

663559R91

BEARING, BALL,1.5" ID

BEARING

3шт.

Ref #15 Bearing does require the use of a lock collar. FOR THE COLLAR, ORDER P/N 455112R11.

1шт.

16

700127353

SUPPORT

- bearing, center

1шт.

17

700127350

SUPPORT

- bearing, rear

1шт.

18

700127349

SHIELD

TUBE - shield

2шт.

19

700127348

SHAFT

- drive

1шт.

20

700116056

SPACER

2шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

22

700127352

SHIELD

- rear

1шт.

23

700713851

PTO

SLIPJOINT ASSEMBLY - male half

1шт.

24

700713852

PTO

SLIPJOINT ASSEMBLY - female half

1шт.

25

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

26

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

Выбрано товаров: 28
