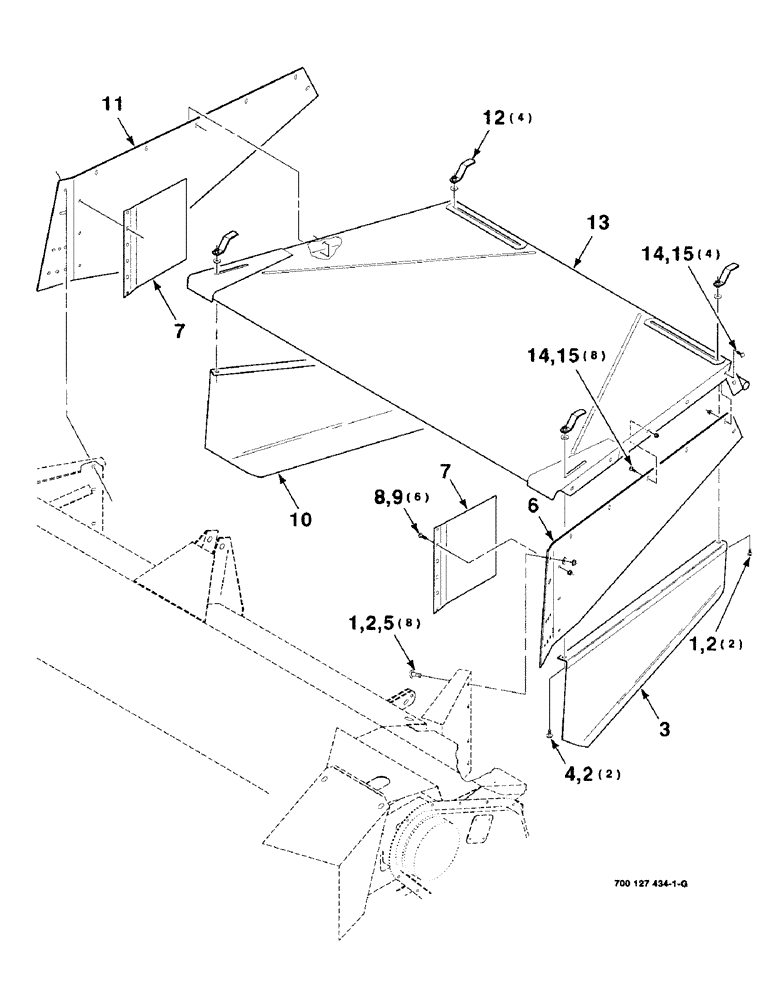

Запчасти Case IH 8309 (7-30) - FORMING SHIELDS ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

10шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

3

700127393

SHIELD

FORMING SHIELD - left

1шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

700128238

SUPPORT

- left

1шт.

7

700128253

SHIELD

2шт.

8

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

6шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

10

700127394

SHIELD

FORMING SHIELD - right

1шт.

11

700128240

SUPPORT

- right

1шт.

12

6232532

NUT

ASSEMBLY

4шт.

13

700128248

SHIELD

WA - top

1шт.

14

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

12шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.
