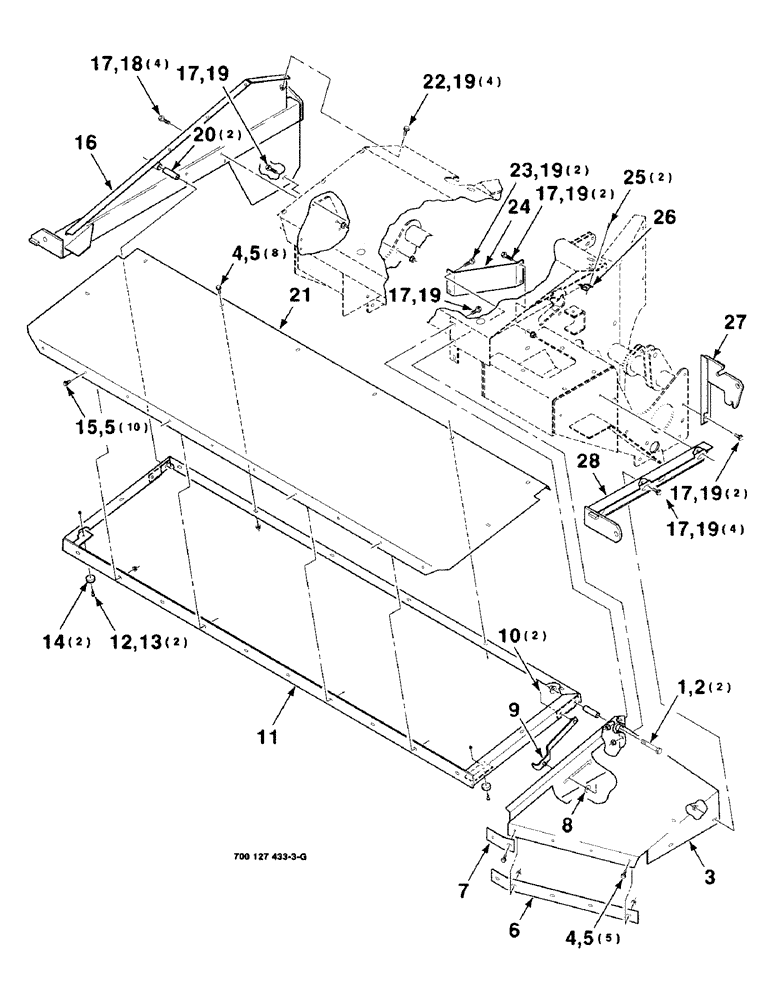

Запчасти Case IH 8309 (7-28) - SHIELDS ASSEMBLY, CUTTERBAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

2шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

3

700127524

SUPPORT

WA

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

13шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

23шт.

6

700127527

STRAP

1шт.

7

700127467

STRAP

1шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

9

700127519

LATCH

WA

1шт.

10

432-1012

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

11

700127517

SUPPORT

WA - shield, center

1шт.

12

700707203

CAPTIVE WASHER SCREW

#12-24 X 3/4 HWHMS

2шт.

13

1954816C1

LOCK NUT

#12-24 LOCKNUT - special

2шт.

14

700708648

BUMPER

RUBBER BUMPER

2шт.

15

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

10шт.

16

700127515

SUPPORT

SHIELD WA - right

1шт.

17

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

14шт.

18

231-5146

FLANGE NUT,3/8"-16

4шт.

19

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

16шт.

20

158675

SPACER

2шт.

21

700127521

SHIELD

- center

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

23

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

24

700127459

SUPPORT

1шт.

25

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

#8-18 X 1/2 CRTHTFTS

2шт.

26

1960763C3

LATCH

RECEIVER - stud

1шт.

27

700127507

SUPPORT

WA - rear, left

1шт.

28

700127510

SUPPORT

WA - front, left

1шт.
