(7-22) - CURTAIN ASSEMBLY

Запчасти Case IH 8309 (7-22) - CURTAIN ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

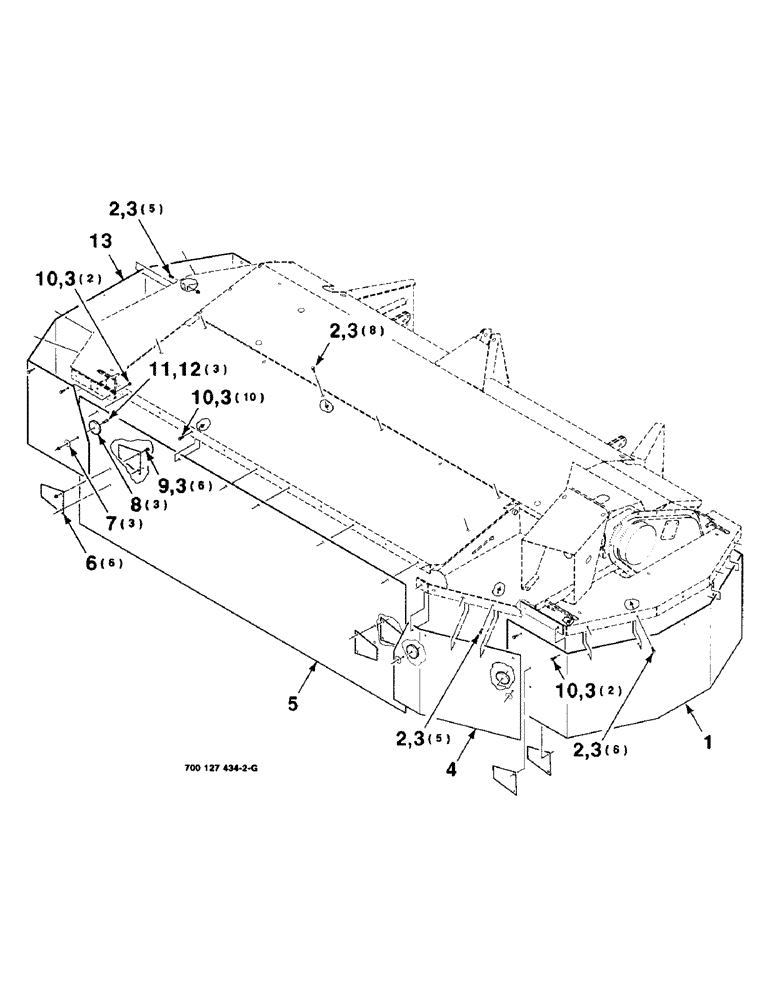

Схема запчастей Case IH 8309 - (7-22) - CURTAIN ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
2
3
3
5
10
6
4
11
3
12
1
2
8
3
3
2
3
13
10
3
10
2
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700712528

CURTAIN

- side, left

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

24шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

44шт.

4

700712530

CURTAIN

- front, left

1шт.

5

700712529

CURTAIN

- front

1шт.

6

700127153

LARGE PLATE

PLATE

6шт.

7

382069

WASHER

3/8 WASHER

3шт.

8

700712189

MAGNET

3шт.

9

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

6шт.

10

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

14шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

12

231-5146

FLANGE NUT,3/8"-16

3шт.

13

700711830

CURTAIN

- side

1шт.
