Запчасти Case IH 8309 (7-18) - HUB, AXLE AND STRUT ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

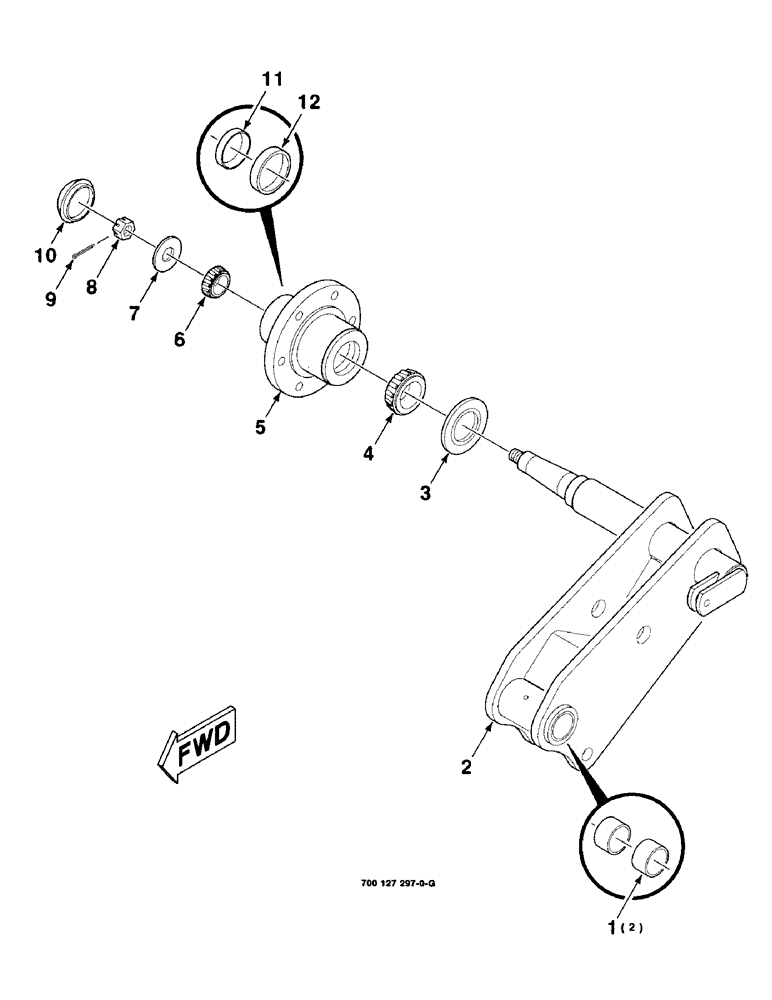

Схема запчастей Case IH 8309 - (7-18) - HUB, AXLE AND STRUT ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS
6
12
4
5
1
8
2
7
9
11
10
3

Артикул

Название

Примечание

Количество

1

852459

BRONZE BUSHING

BUSHING - bronze

2шт.

2

700127106

STRUT

WA - right (Includes item 1)

1шт.

3

844050

SEAL

1шт.

4

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing

1шт.

5

826255

HUB

ASSEMBLY (Includes items 11 & 12)

1шт.

6

711507

ROLLER BEARING,31.77 mm ID x 16.764 mm

CONE - bearing

1шт.

7

26971

WASHER

- special

1шт.

8

425-1312

SLOTTED NUT,3/4"-16, G5

3/4-16 SHN GR2

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

10

518842R1

CAP

HUB CAP

1шт.

11

651817R1

BEARING CUP

CUP - bearing

1шт.

12

713545

CUP

- bearing

1шт.

Выбрано товаров: 12
