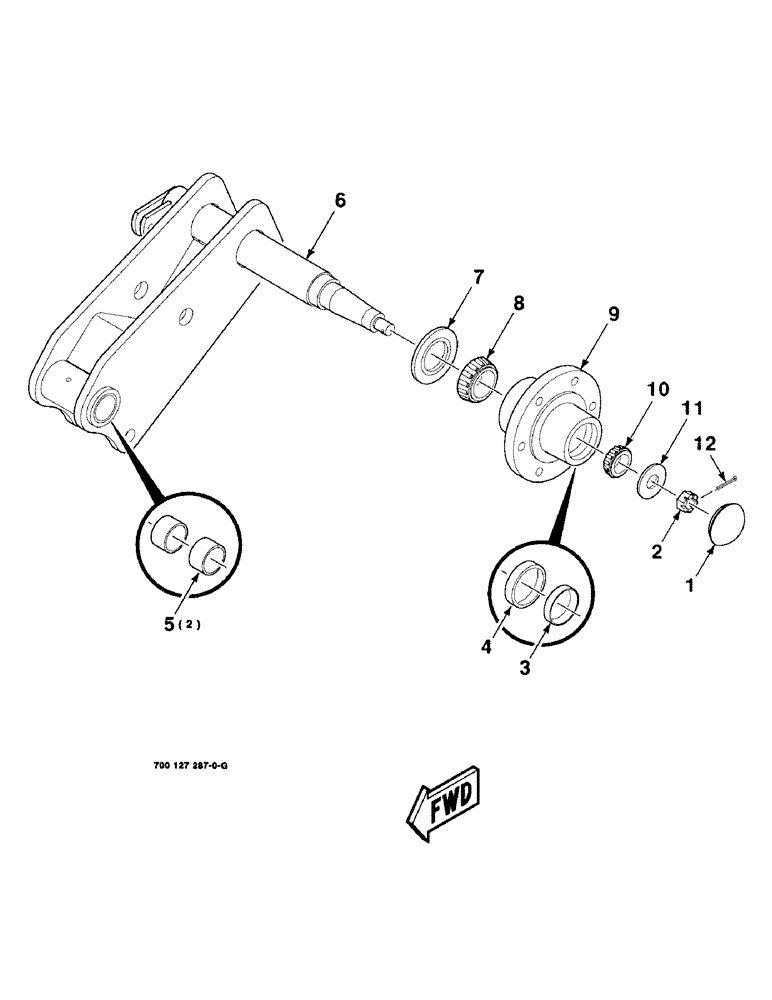

Запчасти Case IH 8309 (7-16) - HUB, AXLE AND STRUT ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

518842R1

CAP

HUB CAP

1шт.

2

425-1312

SLOTTED NUT,3/4"-16, G5

3/4-16 SHN GR2

1шт.

3

651817R1

BEARING CUP

CUP - bearing

1шт.

4

713545

CUP

- bearing

1шт.

5

852459

BRONZE BUSHING

BUSHING - bronze

2шт.

6

700127105

STRUT

WA - left (Includes item 5)

1шт.

7

844050

SEAL

1шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing

1шт.

9

826255

HUB

ASSEMBLY (Includes items 3 & 4)

1шт.

10

711507

ROLLER BEARING,31.77 mm ID x 16.764 mm

CONE - bearing

1шт.

11

26971

WASHER

- special

1шт.

12

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.
