Запчасти Case IH 8309 (5-06) - PIVOT ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

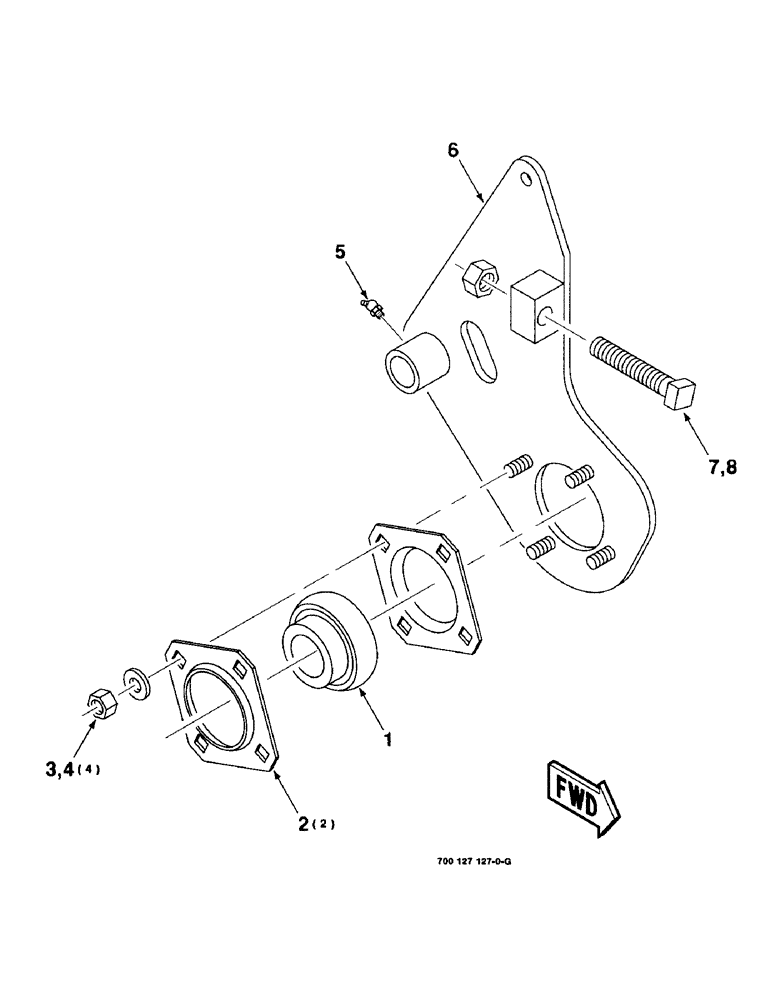

Схема запчастей Case IH 8309 - (5-06) - PIVOT ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS
8
2
4
1
6
5
7
3

Артикул

Название

Примечание

Количество

1

663559R91

BEARING, BALL,1.5" ID

BEARING - spherical

1шт.

FOR THE COLLAR, ORDER P/N 455112R11

1шт.

Ref #1.... THIS BEARING DOES NOT INCLUDE THE COLLAR.

1шт.

2

1307583C1

FLANGED BEARING

- bearing

2шт.

3

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

6

700127121

ARM

WA - right

1шт.

7

69674

SET SCREW,Sq Hd, 3/4"-10 x 4"

3/4-10 X 4 CPSQHSS

1шт.

8

425-1012

NUT,3/4"-10, G5

1шт.

Выбрано товаров: 10
