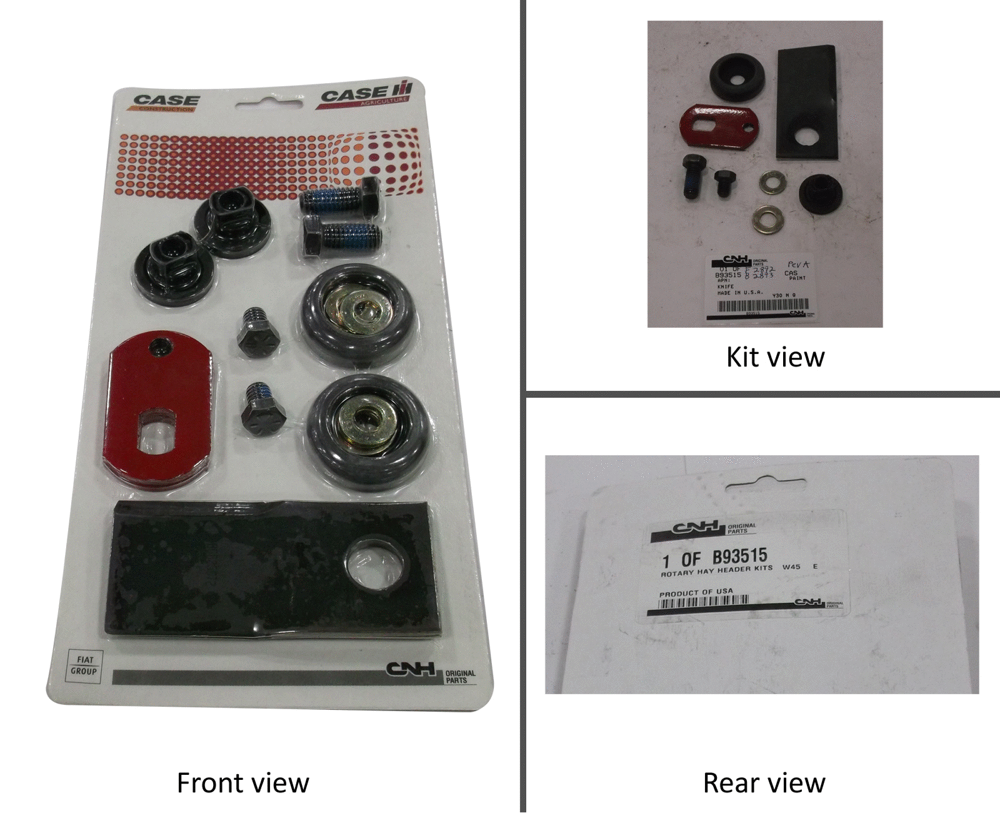

Запчасти Case IH 8309 (3-12.01) - KIT HAY HEADER ROTOR (58) - ATTACHMENTS/HEADERS

1

B93515

KIT

Includes 2 - 9

1шт.

2

27431R1

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

2шт.

3

86632588

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

4

87019792

WASHER,0.47" ID x 0.92" OD x 0.1" Thk

2шт.

5

700127071

MOUNTING PARTS

Knife Mounting

2шт.

6

700127073

NUT

2шт.

7

700711964

BOLT,Hex, 7/16" - 14 x , Gr 8

2шт.

8

86625672

BLADE

11Deg CCW

2шт.

9

87315598

SHIELD

Shield Bolt

2шт.
