(3-10) - CUTTER BAR U-JOINT ASSEMBLY, 700713411 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8309 (3-10) - CUTTER BAR U-JOINT ASSEMBLY, 700713411 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

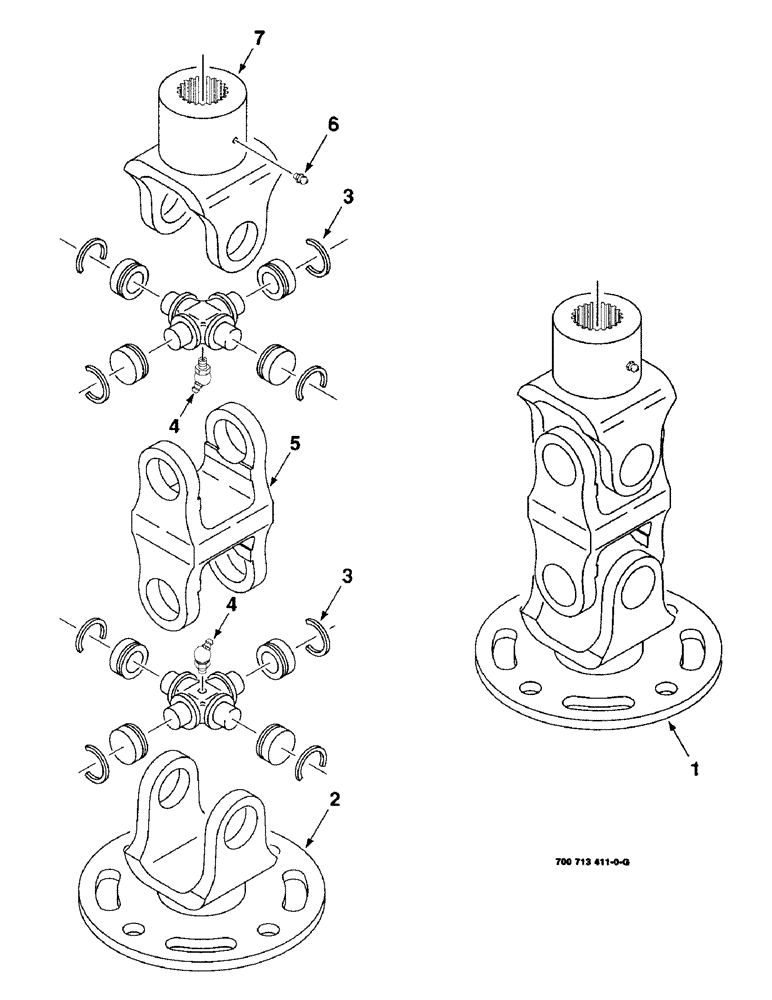

Схема запчастей Case IH 8309 - (3-10) - CUTTER BAR U-JOINT ASSEMBLY, 700713411 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
2
4
7
1
3
5
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700713411

FLEXIBLE JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

2

700713523

FORK

YOKE AND FLANGE

1шт.

3

757443

U-JOINT SPIDER

CROSS AND BEARING KIT (Includes item 4)

2шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 PTF X 65 DEGREE ZERK

2шт.

5

757427

FORK

YOKE - double

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

7

700711938

FORK

YOKE - splined, 1-3/8-21 (Includes item 6)

1шт.
