Запчасти Case IH 8309 (3-08) - CUTTER BAR U-JOINT ASSEMBLY, 700711841 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

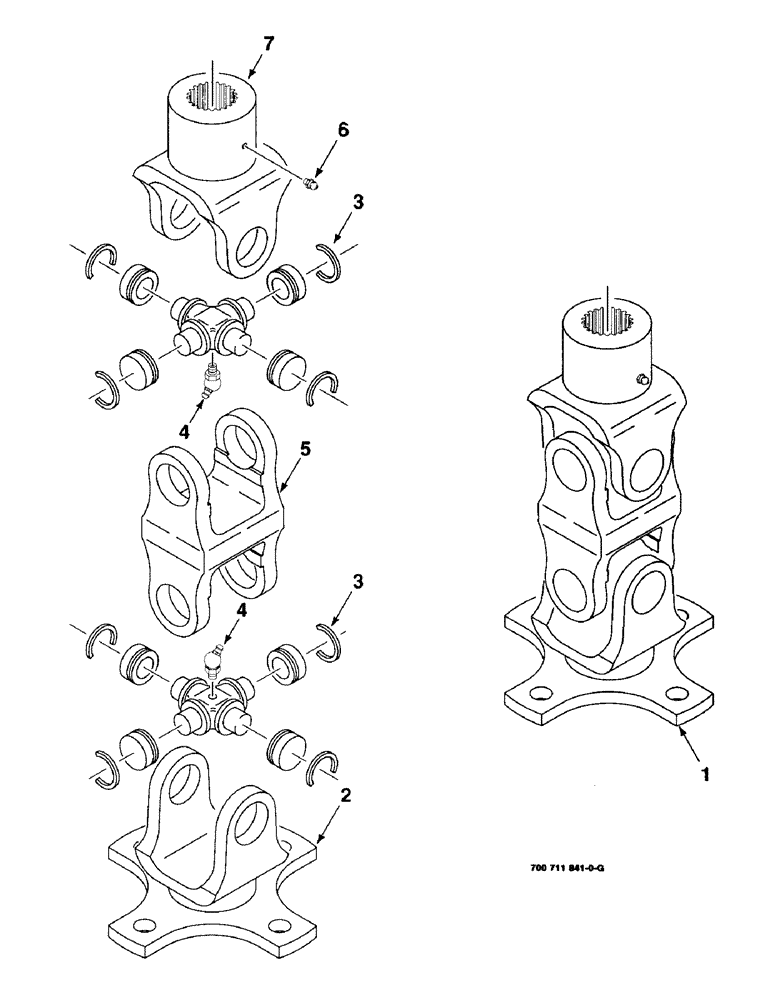

Схема запчастей Case IH 8309 - (3-08) - CUTTER BAR U-JOINT ASSEMBLY, 700711841 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
3
3
5
6
1
2
4
7
4

Артикул

Название

Примечание

Количество

1

700711841

FLEXIBLE JOINT

U-JOINT ASSEMBLY COMPLETE

1шт.

2

700708937

FORK

YOKE AND FLANGE

1шт.

3

757443

U-JOINT SPIDER

CROSS AND BEARING KIT (Includes item 4)

2шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 PTF X 65 DEGREE ZERK

2шт.

5

757427

FORK

YOKE - double

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

7

700711938

FORK

YOKE - splined, 1-3/8-21 (Includes item 6)

1шт.

Выбрано товаров: 7
