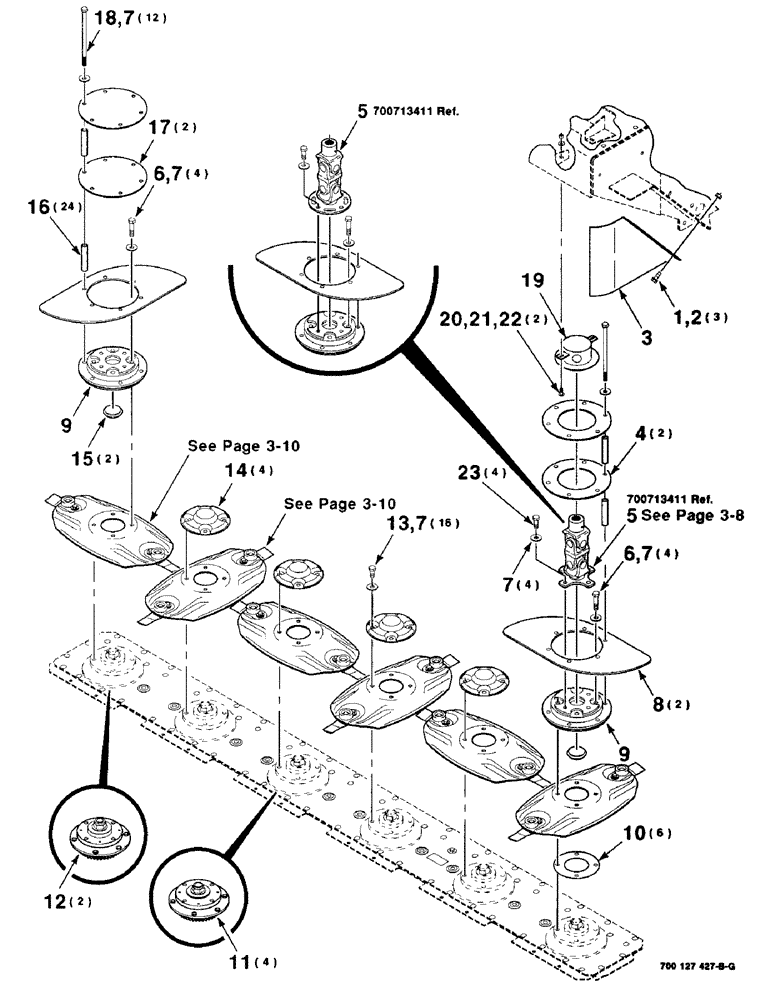

Запчасти Case IH 8309 (3-06) - CUTTER DISC ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

3шт.

3

700127452

SHIELD

1шт.

4

700127061

RING

- cage

2шт.

5

700711841

FLEXIBLE JOINT

U-JOINT ASSEMBLY

1шт.

700713411

FLEXIBLE JOINT

U-JOINT ASSEMBLY

1шт.

6

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

1/2-20 X 2-1/2 C

8шт.

7

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

40шт.

8

700127380

SLINGER

2шт.

9

700127059

ADAPTER

- disc drive

2шт.

10

700128273

SHIM

(S.N. CFH0091501 thru CFH0091813)

6шт.

11

700713260

SPINDLE

ASSEMBLY - inner

4шт.

12

700713261

SPINDLE

ASSEMBLY - outer

2шт.

13

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

1/2-20 X 1 C

16шт.

14

700127062

CAP

- disc

4шт.

15

7722440

PLUG

2шт.

16

6559314

SPACER

24шт.

17

700127067

PLATE

RING - cage

2шт.

18

413-8144

BOLT,Hex, 1/2" - 13 x 9", Gr 5

1/2-13 X 9 B

12шт.

19

700127064

TUBE

WA - shield

1шт.

20

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

21

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

22

425-105

NUT,5/16"-18, G5

2шт.

23

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

M12 X 1.25 X 30 C

4шт.
