Запчасти Case IH 8309 (2-28) - GEARBOX ASSEMBLY, 540 RPM, 700712525 GEARBOX ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

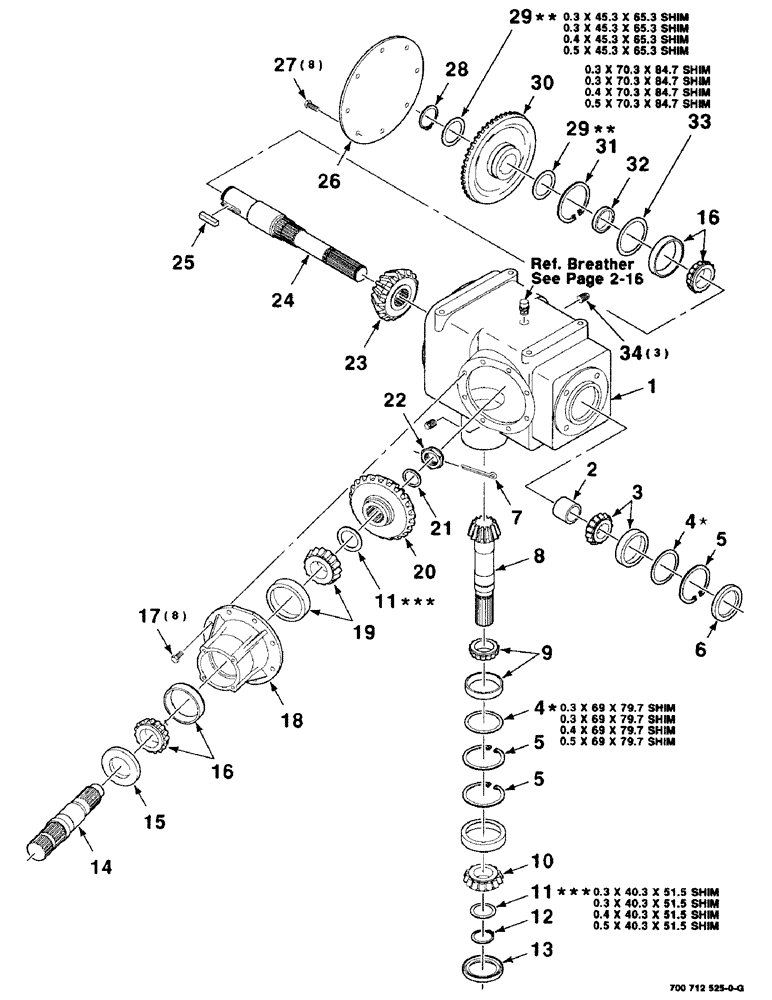

Схема запчастей Case IH 8309 - (2-28) - GEARBOX ASSEMBLY, 540 RPM, 700712525 GEARBOX ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
33
5
2
11
10
31
34
4
9
4
17
27
30
32
29
16
29
25
13
5
11
21
18
6
24
19
22
8
7
28
26
16
12
23
15
3
1
5
20
14

Артикул

Название

Примечание

Количество

700712525

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

700712525R

REMAN-TRANSMISSION

Remanufactured Gearbox

1шт.

700712525C

CORE-TRANSMISSION

Return Part Number, Gearbox

1шт.

1

700712872

CASE

CASING

1шт.

2

700712853

SPACER

1шт.

3

700712858

BEARING ASSY

BEARING

1шт.

4

700712854

SHIM

PACK, see items marked with one asterick in art

2шт.

5

700712857

RING, SNAP

RING - retaining

3шт.

6

700712855

OIL SEAL

1шт.

7

32-1032

COTTER PIN,5/32" x 2"

Pin, Split (Cotter), 5/32" x 2"

1шт.

8

700712864

GEAR

1шт.

9

700712871

BEARING ASSY

BEARING

1шт.

10

700712867

ROLLER BEARING

BEARING

1шт.

11

700712866

SHIM

PACKsee items marked with three asterick in art

2шт.

12

700712865

RING, SNAP

RING - retaining

1шт.

13

700712863

SEAL

1шт.

14

700712868

SHAFT

1шт.

15

700712878

OIL SEAL

SEAL

1шт.

16

700712860

BEARING ASSY

BEARING

2шт.

17

700712366

SCREW

M10 X 1.5 X 22 C GR 8.8

8шт.

18

700712876

HOUSING

EXTENSION

1шт.

19

700712875

BEARING ASSY

BEARING

1шт.

20

700712874

GEAR

1шт.

21

700713257

SHIM

1шт.

22

700712873

NUT

1шт.

23

700712852

GEAR

1шт.

24

700712856

SHAFT

1шт.

25

700712859

KEY

STRAIGHT KEY

1шт.

26

700712832

COVER

1шт.

27

700712830

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

M10 X 1.5 X 20 C GR 8.8

8шт.

28

700712833

RING, SNAP

RING - retaining

1шт.

29

700712837

SHIM

PACK, see items marked with two asterick in art

2шт.

30

700712849

GEAR

1шт.

31

700712850

RING, SNAP

RING - retaining

1шт.

32

700712862

SPACER

1шт.

33

700712861

SHIM

PACK

1шт.

34

700712384

PLUG

3шт.

Выбрано товаров: 37
