(2-24) - LOWER JACKSHAFT U-JOINT ASSEMBLY, 700711842 U-JOINT ASSEMBLYCOMPLETE

Запчасти Case IH 8309 (2-24) - LOWER JACKSHAFT U-JOINT ASSEMBLY, 700711842 U-JOINT ASSEMBLYCOMPLETE (58) - ATTACHMENTS/HEADERS

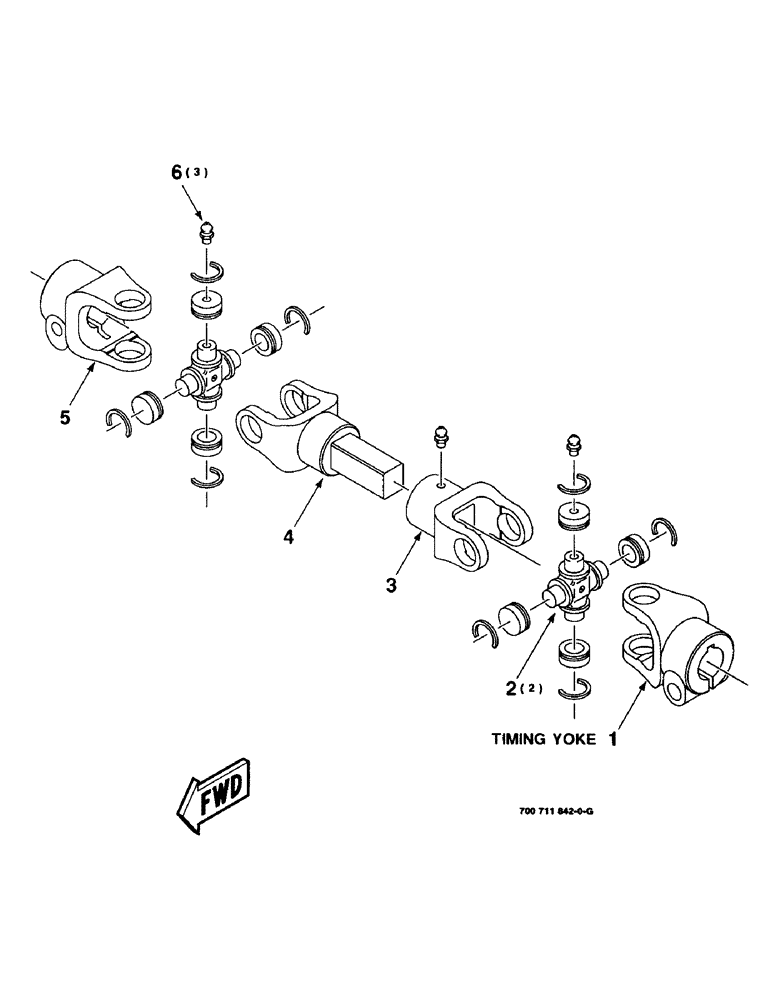

Схема запчастей Case IH 8309 - (2-24) - LOWER JACKSHAFT U-JOINT ASSEMBLY, 700711842 U-JOINT ASSEMBLYCOMPLETE (58) - ATTACHMENTS/HEADERS
6
4
1
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700705535

YOKE

- clamp (timing)

1шт.

2

700711843

FLEXIBLE JOINT

KIT - cross and bearing (Includes item 6)

2шт.

3

700708949

FORK

YOKE - slip

1шт.

4

700708948

FORK

YOKE AND SHAFT

1шт.

5

757716

CLAMP

YOKE - clamp

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1/4-28 X 15/32 ZERK

3шт.
