Запчасти Case IH 8309 (2-16) - GEARBOX ASSEMBLY, U-JOINTS AND SHIELDS (58) - ATTACHMENTS/HEADERS

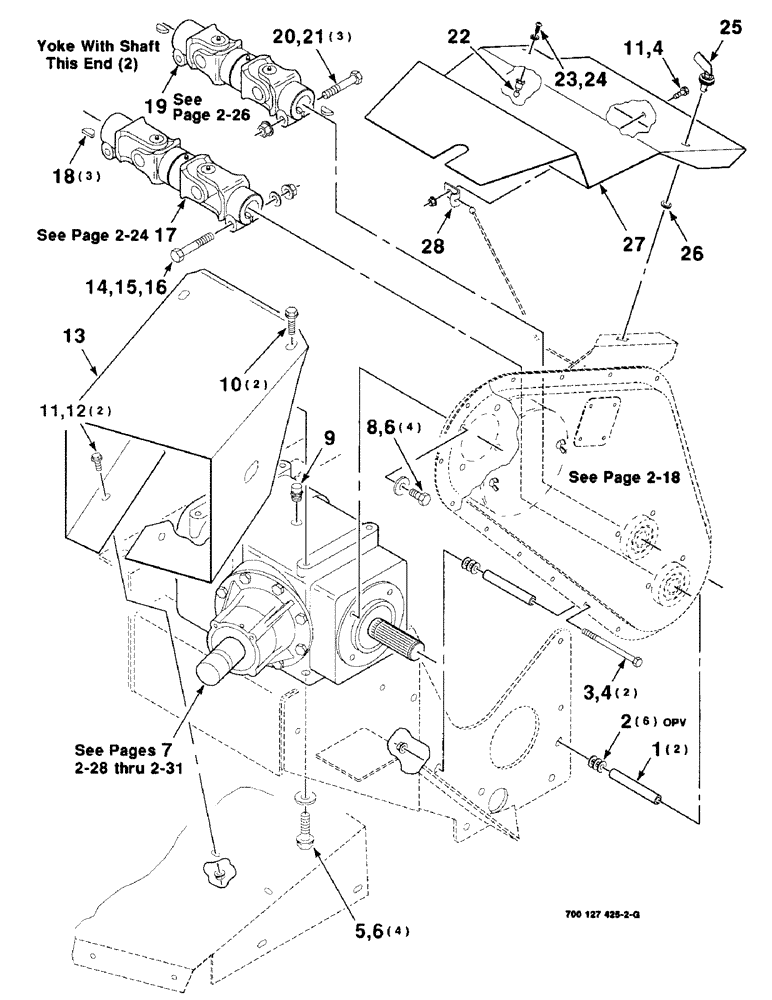

Схема запчастей Case IH 8309 - (2-16) - GEARBOX ASSEMBLY, U-JOINTS AND SHIELDS (58) - ATTACHMENTS/HEADERS
6
26
13
5
14
11
1
21
24
28
19
3
15
12
10
25
6
18
9
4
17
7
27
2
16
11
20
8
22
23
4

Артикул

Название

Примечание

Количество

1

6391114

TUBE,0.625" OD, 4.25" Length

SPACER

2шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

3

113-108

BOLT,Hex, 5/16" - 18 x 3", Gr 5, Full Thd

5/16-18 X 5-1/2 C

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

3шт.

5

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

8шт.

7

700712525

GEARBOX ASSY

GEARBOX ASSEMBLY (540 RPM)

1шт.

7

700712525R

REMAN-TRANSMISSION

Remanufactured Gearbox

1шт.

7

700712525C

CORE-TRANSMISSION

Return Part Number, Gearbox, (540 RPM)

1шт.

700712585

GEARBOX ASSY

GEARBOX ASSEMBLY (1000 RPM)

1шт.

8

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2-13 X 3/4 C

4шт.

9

700712886

BREATHER

1шт.

10

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2-13 X 3/4 HFSS

2шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

13

700127528

SHIELD

-U-JOINT

1шт.

14

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

16

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

17

700711842

FLEXIBLE JOINT

U-JOINT ASSEMBLY

1шт.

18

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

3шт.

19

700708650

FLEXIBLE JOINT

U-JOINT ASSEMBLY

1шт.

20

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

3шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

22

1960762C1

STUD

BALL STUD - latch

1шт.

23

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

#10-32 X 1/2 CRPHMS GR 2

1шт.

24

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

25

7895469

STUD

OFFSET WING HEAD STUD

1шт.

26

794339

SPRING WASHER

1шт.

27

700127529

SHIELD

1шт.

28

700114675

ANCHOR

- cable

1шт.

Выбрано товаров: 31
