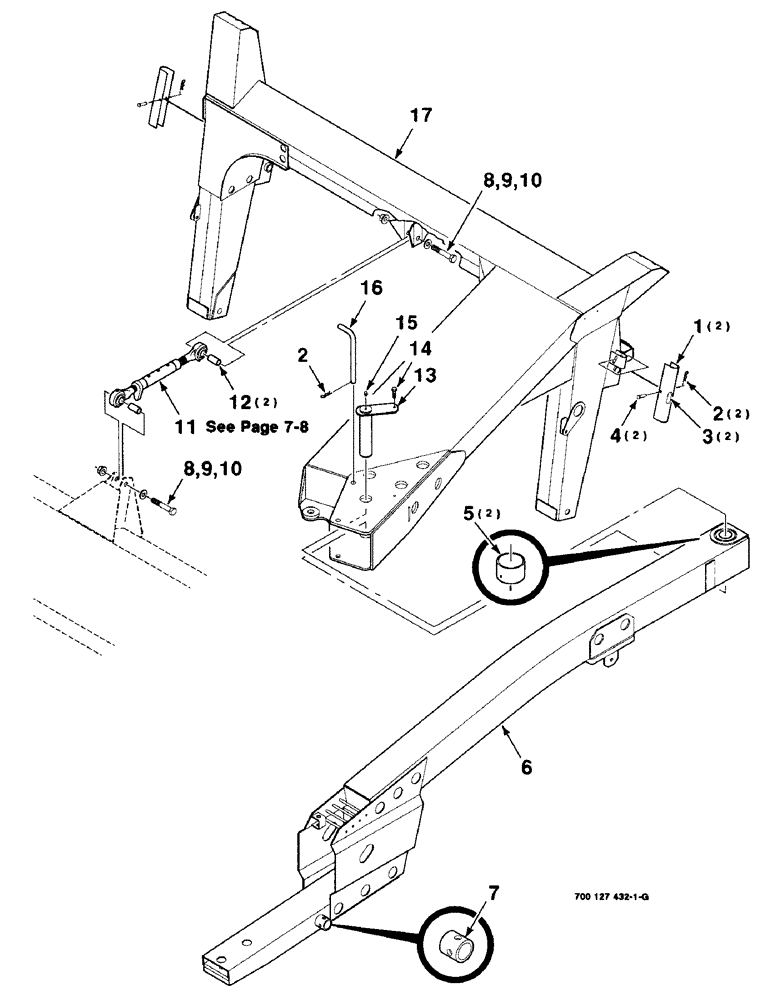

Запчасти Case IH 8309 (7-06) - TONGUE AND MAINFRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

6251292

STOP

- safety (Includes item 3)

2шт.

2

S120261

PIN

.148 WIRE HAIR PIN COTTER

3шт.

3

700706023

DECAL

- safety stop

2шт.

4

427-6225

CLEVIS PIN,3/8" x 2 1/4"

3/8 X 2-1/8 CLEVIS PIN

2шт.

5

700706942

BRONZE BUSHING,50.902 mm ID x 57.239 mm OD x 38.1 mm

BEARING - bronze

2шт.

6

700127481

TOW BAR

TONGUE WA (Includes items 5 and 7)

1шт.

7

6227391

TUBE,2" OD, 1.88" Length

- jack

1шт.

8

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

2шт.

9

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

10

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

2шт.

11

700127271

LINK

ASSEMBLY - top

1шт.

12

6108112

BUSHING

SPACER

2шт.

13

700128233

PIN

WA

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

ZERK

1шт.

16

700128236

PIN

1шт.

17

700127976

FUNNEL

MAINFRAME WA

1шт.
