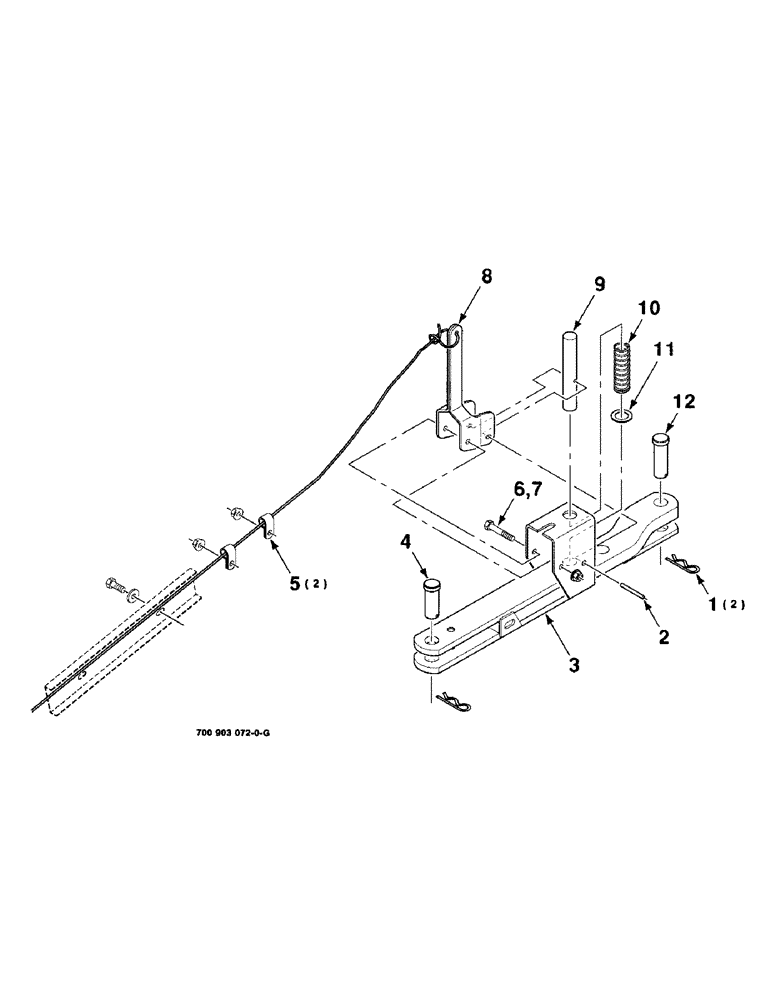

Запчасти Case IH 8309 (7-04) - MECHANICAL TONGUE SWING ASSEMBLY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

2

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

3

700128254

LINK

WA

1шт.

4

141-10

CLEVIS PIN,1" x 2.406"

1 X 2-1/2 CLEVIS PIN

1шт.

5

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Line 5/8", Insul, 3/8" Bolt

2шт.

6

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 HFTLN GR/G

1шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

8

700128261

HANDLE

WA

1шт.

9

700128265

SHAFT

1шт.

10

700712689

SPRING

- compression

1шт.

11

52258

BUSHING

1 X 14 GAUGE NRMB

1шт.

12

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

1 X 3-1/2 CLEVIS PIN

1шт.
