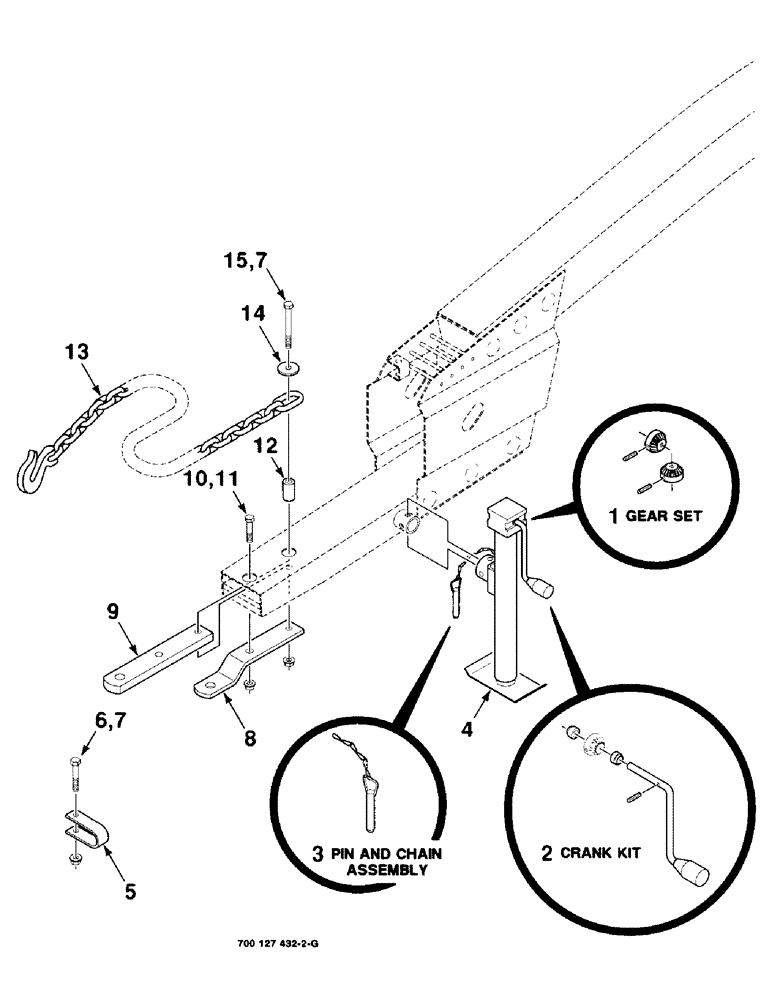

Запчасти Case IH 8309 (7-02) - HITCH AND JACK ASSEMBLY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

700702059

KIT

GEAR SET

1шт.

2

700702060

CRANKED HANDLE

CRANK KIT

1шт.

3

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY

1шт.

4

700709385

JACK

(Incl. items 1, 2, & 3)

1шт.

5

148558C1

CLEVIS

- safety chain

1шт.

6

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

7

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

8

700127497

MOUNTING PARTS

MOUNTING - hitch, lower

1шт.

9

700127346

STRAP

- hitch

1шт.

10

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

.75 X 3 UNC GR5 YZD

1шт.

11

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.

12

700114929

TUBE,31.75 mm OD, 41 mm Length

SPACER

1шт.

13

700705598

CHAIN (CE)

CHAIN - safety

1шт.

14

6251169

WASHER

1шт.

15

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.
