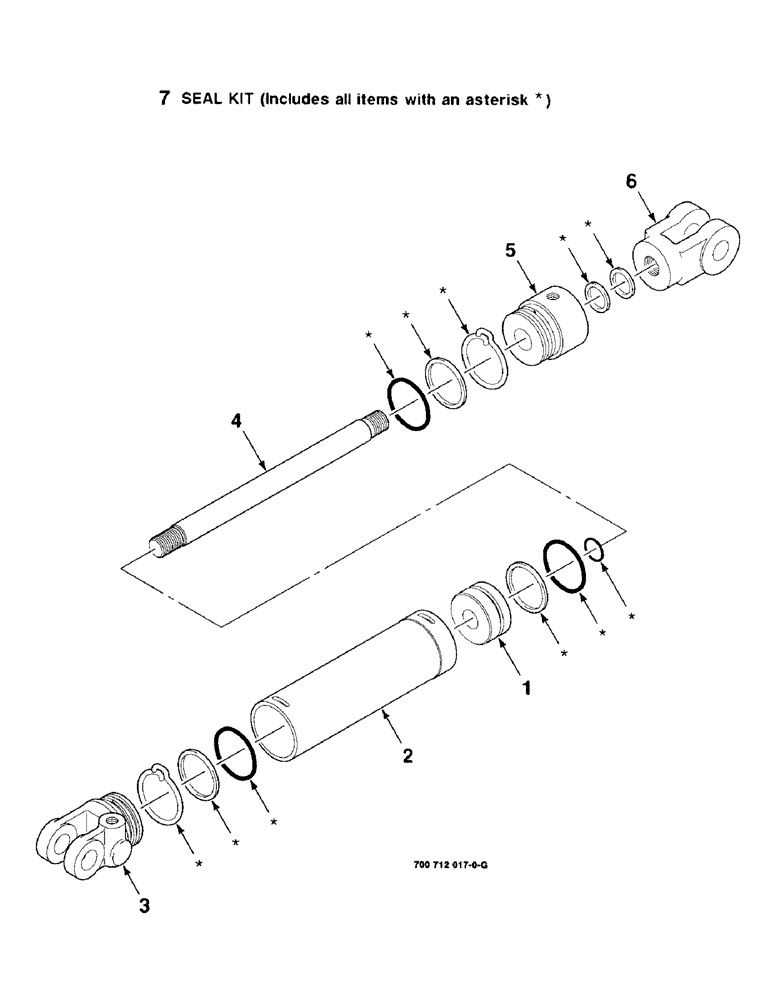

Запчасти Case IH 8309 (8-10) - HYDRAULIC CYL ASSY, HEADER LIFT, RIGHT, 700712017 HYD. CYL. COMPLETE, 2-3/4" BORE X 8" STROKE (35) - HYDRAULIC SYSTEMS

700712017

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2-3/4" bore x 8" stroke)

1шт.

1

102905A1

PISTON

- cylinder

1шт.

2

102906A1

TUBE

BARREL

1шт.

3

700704894

CYLINDER HEAD

HEAD - cylinder

1шт.

4

102907A1

ROD

- piston

1шт.

5

102909A1

BEARING

- cylinder rod

1шт.

6

102908A1

END

CLEVIS - rod end

1шт.

7

H673838

SEAL

SEAL KIT

1шт.
