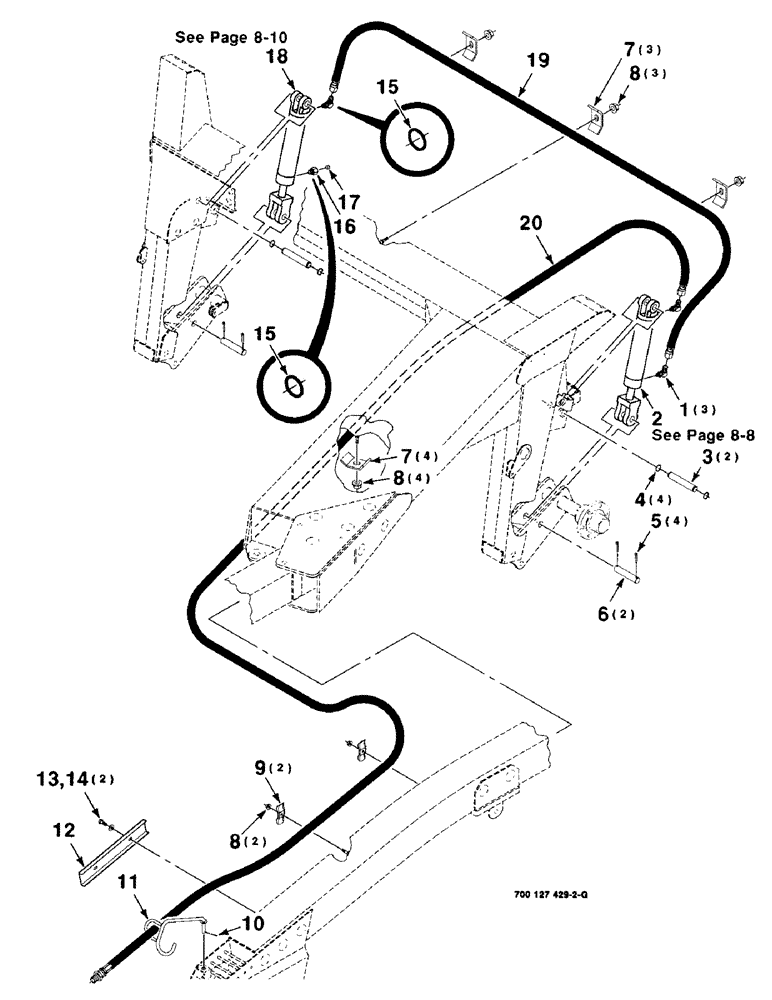

Запчасти Case IH 8309 (8-06) - HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 15) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

3шт.

2

700712015

CYLINDER

- hydraulic

1шт.

3

700118057

PIN

- cylinder, upper

2шт.

4

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

4шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

6

700127281

PIN

- cylinder, lower

2шт.

7

6246995

CLAMP

7шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

9шт.

9

451641

CLAMP

- hose

2шт.

10

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

11

700127382

HANGER

WA

1шт.

12

700127469

CHANNEL

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

15

738468

O-RING

2шт.

16

7746985

ROD, CONNECTING

REDUCER (Includes item 15)

1шт.

17

700704639

PLUG

- vent

1шт.

18

700712017

CYLINDER

- hydraulic

1шт.

19

700701552

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

20

7796113

HOSE

- hydraulic

1шт.
