(8-04) - HYDRAULIC CYLINDER ASSEMBLY, TONGUE, 700708562 HYDRAULIC CYLINDER COMPLETE, 3" BORE X 8" STROKE

Запчасти Case IH 8309 (8-04) - HYDRAULIC CYLINDER ASSEMBLY, TONGUE, 700708562 HYDRAULIC CYLINDER COMPLETE, 3" BORE X 8" STROKE (35) - HYDRAULIC SYSTEMS

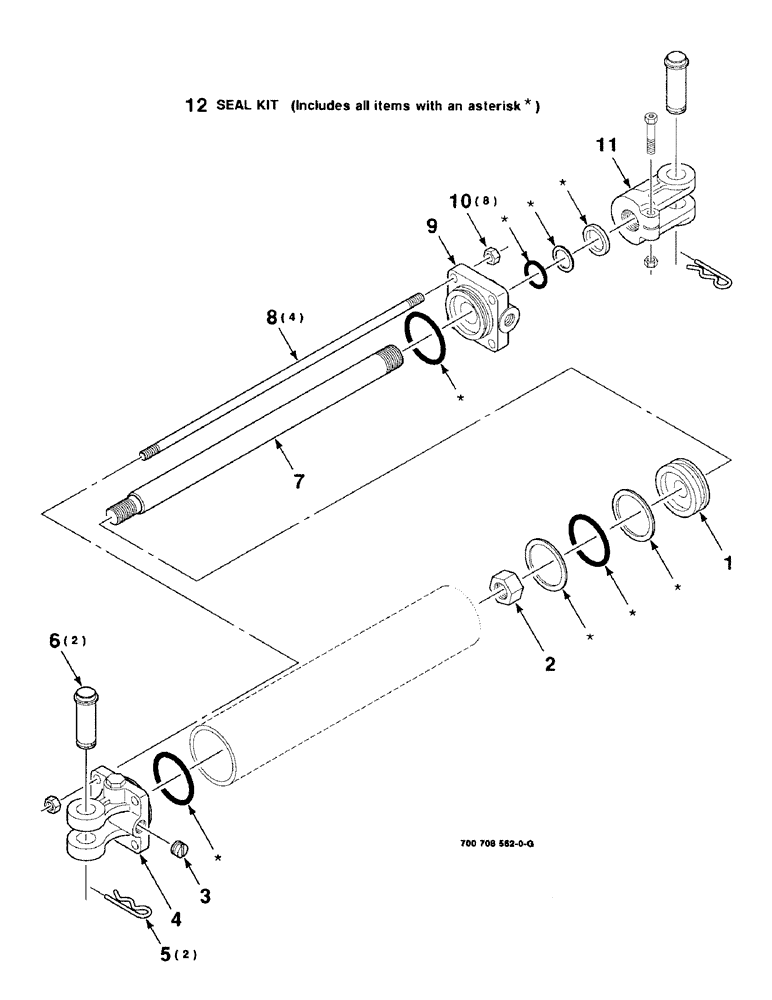

Схема запчастей Case IH 8309 - (8-04) - HYDRAULIC CYLINDER ASSEMBLY, TONGUE, 700708562 HYDRAULIC CYLINDER COMPLETE, 3" BORE X 8" STROKE (35) - HYDRAULIC SYSTEMS
3
12
8
5
7
10
1
2
9
4
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700708562

CYLINDER

HYDRAULIC CYLINDER COMPLETE (3" bore x 8" stroke)

1шт.

1

7036734

PISTON

1шт.

2

7036676

NUT

- piston

1шт.

3

700708857

ORIFICE

1шт.

4

700708858

BASE

- clevis

1шт.

5

S120261

PIN

.149 X 2-3/4 HAIRPIN COTTER

2шт.

6

811134C1

PIN

- clevis

2шт.

7

7036718

ROD

1шт.

8

1256443C1

TIE-ROD

TIE ROD

4шт.

9

700708860

HEAD

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

11

T55022

CLEVIS

- rod

1шт.

12

7038649

SEAL KIT

SEAL KIT

1шт.
