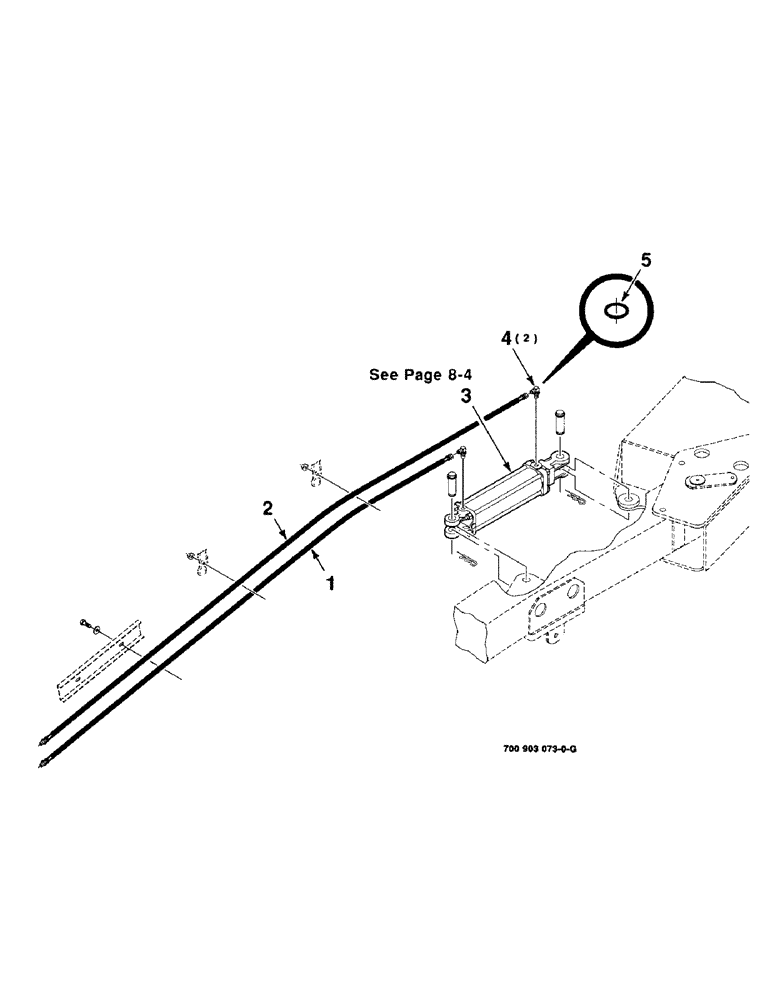

Запчасти Case IH 8309 (8-02) - HYDRAULIC TONGUE SWING ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

700708664

HOSE ASSY.

HOSE - hydraulic

1шт.

2

700708665

HOSE ASSY.

HOSE - hydraulic

1шт.

3

700708562

CYLINDER

- hydraulic (Includes pins)

1шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 5) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

5

738468

O-RING

1шт.
