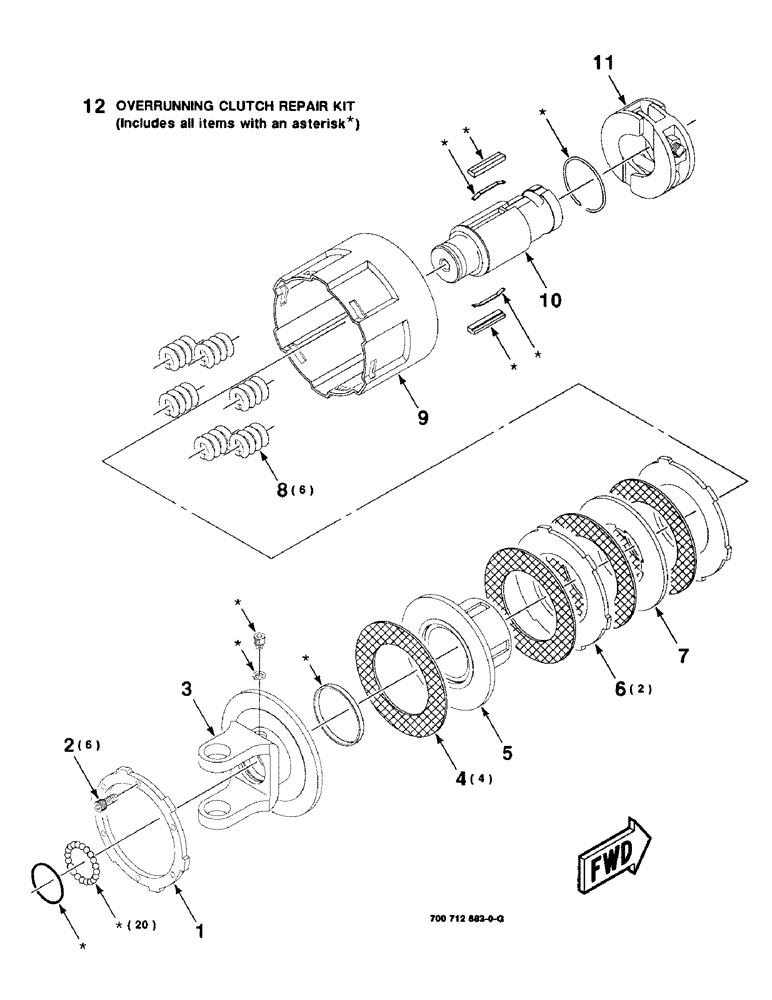

Запчасти Case IH 8309 (2-14) - OVERRUNNING FRICTION CLUTCH ASSEMBLY, 1000 RPM, 700712683 OVERRUNNING FRICTION CLUTCH COMPLETE (31) - IMPLEMENT POWER TAKE OFF

1

700712555

OIL SEAL

LOCKING RING

1шт.

2

700712541

HEX SOC SCREW

5/16-18 X 7/8 HSHCS

6шт.

3

700712556

FORK

YOKE AND PLATE

1шт.

#3, p/n for 1000 RPM yoke and plate is 700716501. TSG RJE 12-28-97

1шт.

4

700712569

DISC

FRICTION DISC

4шт.

5

700712558

HUB

FRICTION CLUTCH OUTER HUB

1шт.

6

700712560

LARGE PLATE

PLATE - outer

2шт.

7

700712559

LARGE PLATE

PLATE - inner

1шт.

8

700712553

SPRING

- compression

6шт.

9

700712552

HOUSING

ASSEMBLY

1шт.

10

700712686

HUB

INNER DRIVE HUB AND EXTENSION

1шт.

11

700712685

HUB

- fitting

1шт.

12

700712633

PACKAGE, REPAIR

OVERRUNNING CLUTCH REPAIR KIT

1шт.
