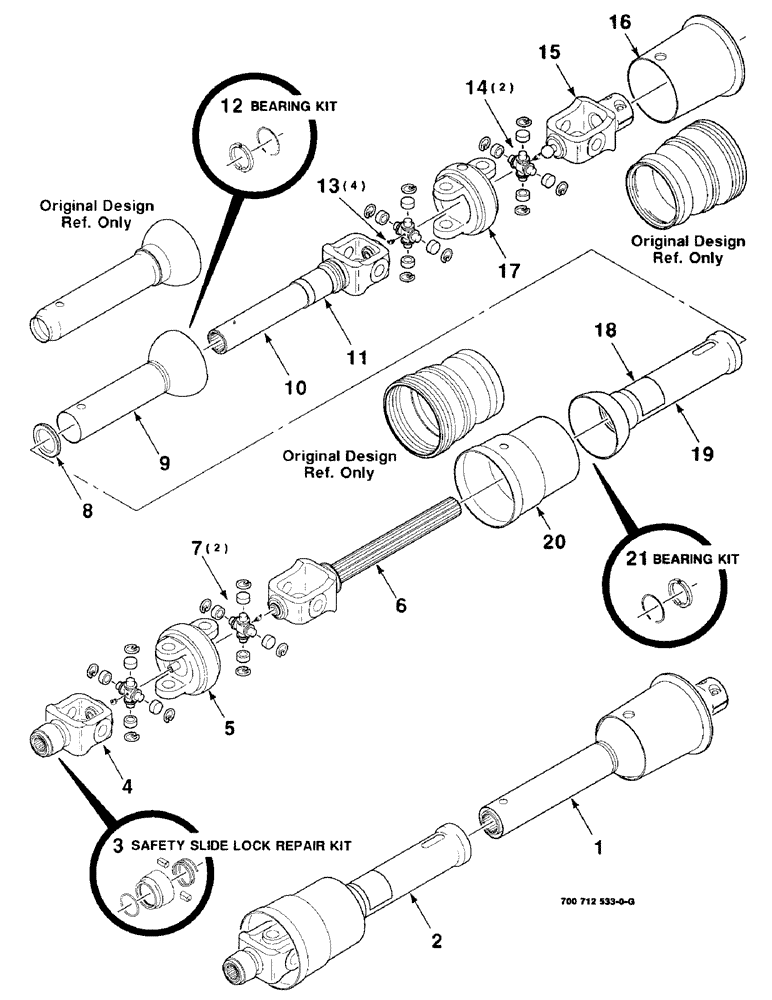

Запчасти Case IH 8309 (2-06) - DRIVELINE ASSEMBLY, WEASLER - 1000 RPM (31) - IMPLEMENT POWER TAKE OFF

1

700712754

PTO

IMPLEMENT HALF ASSEMBLY

1шт.

2

700712753

PTO

TRACTOR HALF ASSEMBLY

1шт.

3

700710928

REPAIR KIT

SAFETY SLIDE LOCK REPAIR KIT

1шт.

4

700712759

FORK

YOKE WITH QD SLIDE COLLAR

1шт.

5

700712749

HOUSING

C.V. CENTER HOUSING ASSEMBLY

1шт.

6

700712755

FORK

YOKE AND SHAFT

1шт.

7

700712748

FLEXIBLE JOINT

CROSS AND BEARING KIT

2шт.

8

700715905

CENTRALIZER

1шт.

NSS-Must order Ref. 20 to get centralizer

1шт.

9

700712757

GUARD

SHIELD - inner

1шт.

10

700712758

FORK

YOKE, tube and slip sleeve

1шт.

In NSS it is included in Ref. 19 700712576.

1шт.

11

700708583

DECAL

- danger, shield missing

1шт.

12

700712750

BEARING ASSY

BEARING KIT

1шт.

13

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREE ZERK

4шт.

14

700712733

FLEXIBLE JOINT

CROSS AND BEARING KIT

2шт.

15

700712766

FORK

DOUBLE CLAMP YOKE

1шт.

16

700712765

BELL HOUSING

BELL EXTENSION (W/Nylon Centralizer)

1шт.

17

700712763

HOUSING

C.V. CENTER HOUSING ASSEMBLY

1шт.

18

80672C1

DECAL

- danger

1шт.

19

700712756

GUARD

SHIELD - outer

1шт.

20

700712576

BELL HOUSING

BELL EXTENSION (W/Nylon Centralizer)

1шт.

21

700712761

SHIELD

BEARING KIT

1шт.
