Запчасти Case IH DH403 (58.110.BH) - KNIFE, DRIVE ASSY (58) - ATTACHMENTS/HEADERS

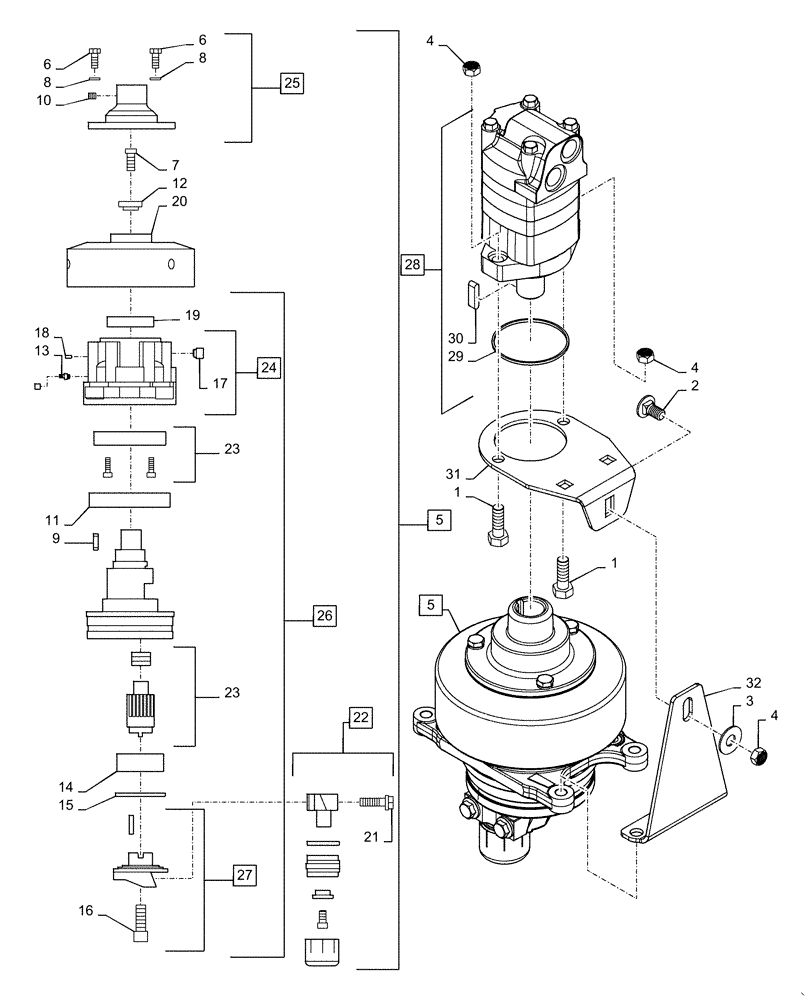

Схема запчастей Case IH DH403 - (58.110.BH) - KNIFE, DRIVE ASSY (58) - ATTACHMENTS/HEADERS
32
14
29
8
25
9
19
2
5
3
12
1
18
22
17
21
30
4
4
16
26
28
23
15
24
10
13
31
11
23
4
8
27
20
6
5
1
6
7

Артикул

Название

Примечание

Количество

1

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

2

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

3

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

4

88871

NUT,1/2"-13, GC

3шт.

5

73356028

DRIVE

Knife, Incl 6 - 27

1шт.

6

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

7

86512142

HEX SOC SCREW,M12 x 30mm, Cl 12.9, Full Thd

1шт.

8

81547

LOCK WASHER,7/16"

3шт.

9

86565871

KEY

Flywheel

1шт.

10

300480

SET SCREW,M10 x 12mm

1шт.

11

86565863

BEARING,90mm ID x 140mm OD x 24mm W

Knife Drive

1шт.

12

86565870

WASHER

Flywheel

1шт.

13

86565864

LUBE NIPPLE

1шт.

14

86565867

CRANKSHAFT BEARING

1шт.

15

86565868

CIRCLIP

1шт.

16

87304278

HEX SOC SCREW,M16 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.

17

84303438

FILTER

Vent, Schumacher Knife Drive

1шт.

18

84303439

PIN

Grooved Taper

1шт.

19

84303440

BALL BEARING

Knife Drive

1шт.

20

84303441

FLYWHEEL

1шт.

21

87018388

BOLT,Hvy Hex, M12 x 45mm, Cl 10.9

2шт.

22

73356071

BEARING SET

Knife Drive

1шт.

23

73356482

GEAR

Pair

1шт.

24

84303442

KIT

Housing

1шт.

25

86564388

ADAPTER

Flywheel

1шт.

26

73356484

DRIVE

Housing Assy

1шт.

27

73356483

CRANKSHAFT

Half

1шт.

28

73356029

HYDRAULIC MOTOR,100CC

100CC, Incl 29 - 30

1шт.

29

87495627

SEAL KIT

1шт.

30

87482

KEY

Square

1шт.

31

73356026

PLATE

Base, Knife Motor

1шт.

32

73356027

BRACKET

Mount Knife Drive

1шт.

Выбрано товаров: 32
