Запчасти Case IH DH403 (58.110.BD[02]) - KNIFE, DOUBLE, RH, W/HONEY BEE - STUB/STANDARD GUARDS (58) - ATTACHMENTS/HEADERS

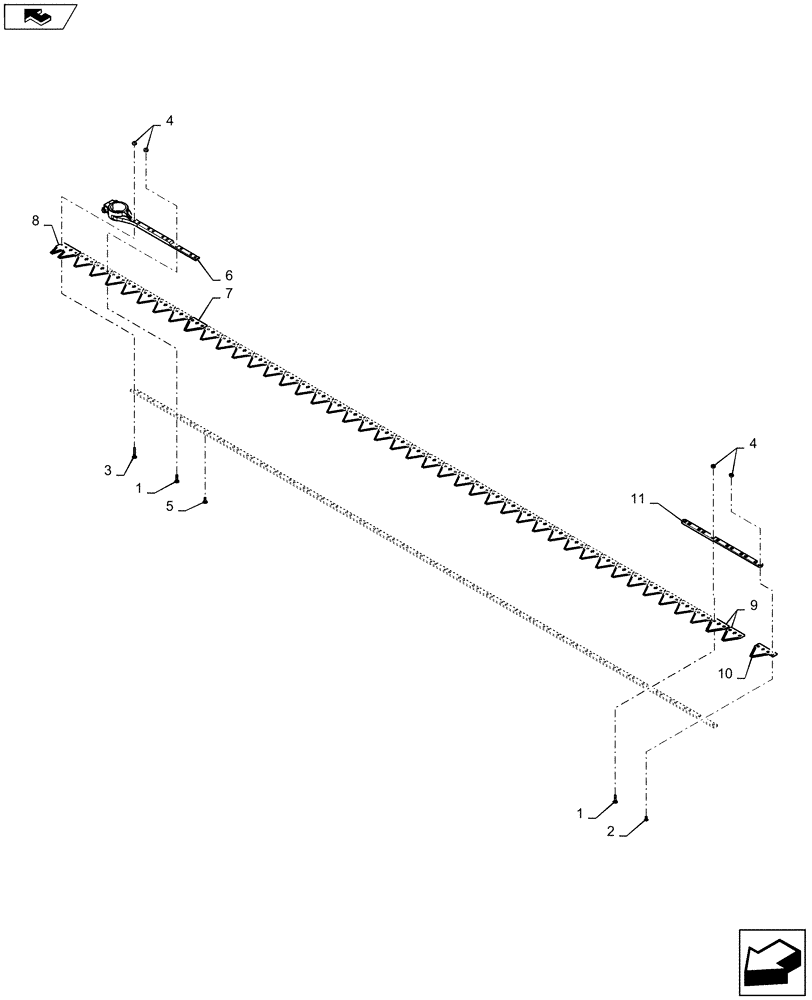

Схема запчастей Case IH DH403 - (58.110.BD[02]) - KNIFE, DOUBLE, RH, W/HONEY BEE - STUB/STANDARD GUARDS (58) - ATTACHMENTS/HEADERS
2
9
6
8
home
1
4
4
11
3
10
5
1
7

Артикул

Название

Примечание

Количество

1

851735

BOLT

Knife, 7/8

9шт.

2

86502340

SCREW,#12 - 25 x 0.515", Gr 8

7шт.

3

851736

BOLT

Knife, 1-1/8

6шт.

4

848083

LOCK NUT

21 Foot

90шт.

4

848083

LOCK NUT

25 Foot

106шт.

4

848083

LOCK NUT

30 Foot

126шт.

4

848083

LOCK NUT

36 Foot

150шт.

4

848083

LOCK NUT

40 Foot

166шт.

5

848084

BOLT

Knife, 21 Foot

68шт.

5

848084

BOLT

Knife, 25 Foot

84шт.

5

848084

BOLT

Knife, 30 Foot

104шт.

5

848084

BOLT

Knife, 36 Foot

128шт.

5

848084

BOLT

Knife, 40 Foot

144шт.

6

73356399

KNIFE HEAD

Honey Bee

1шт.

7

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

21 Foot

40шт.

7

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

25 Foot

48шт.

7

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

30 Foot

58шт.

7

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

36 Foot

70шт.

7

86615988

KNIFE SECTION,14 SPI, OVERSERRATED CUTITNG EDGE, OIL PROTECTIVE FINISH, STRAIGHT THRU MOUNTING HOLES

40 Foot

78шт.

8

86617760

KNIFE SECTION

RH End

1шт.

9

86615986

KNIFE SECTION

2шт.

10

86615985

KNIFE SECTION

End

1шт.

11

73356405

STRAP

Overlap

1шт.

Выбрано товаров: 23
