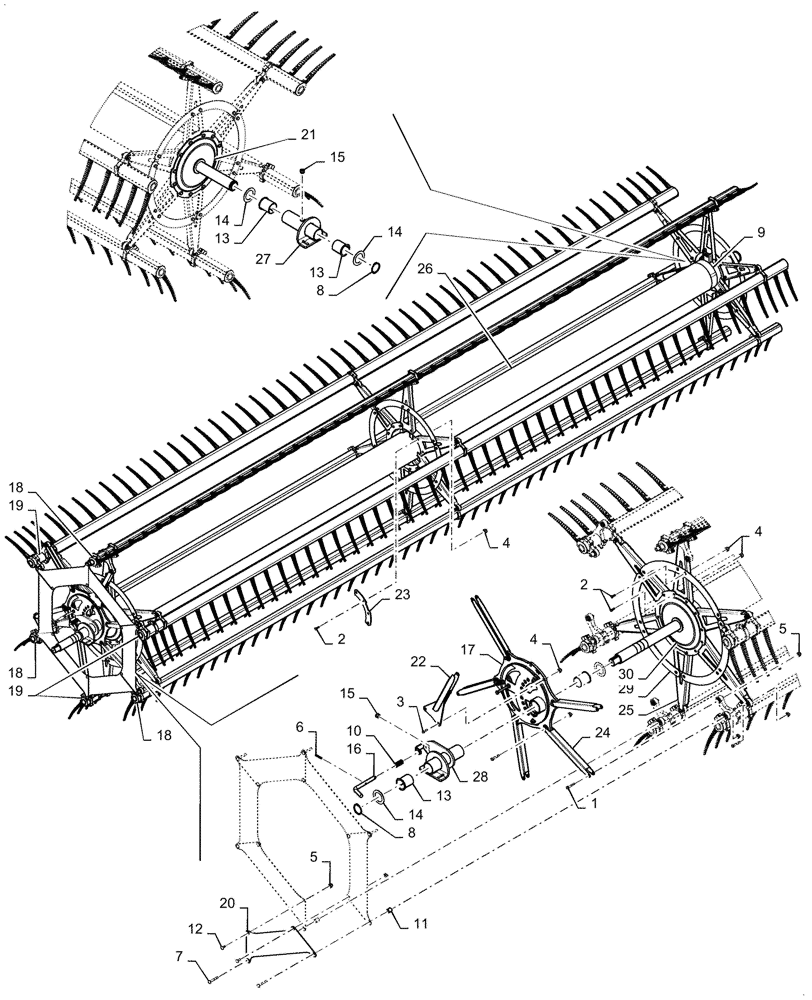

Запчасти Case IH DH403 (58.101.AM[04]) - LH SPLIT REEL ASSY, 6-BAT SINGLE DRIVE, ASN YHZB14001 (58) - ATTACHMENTS/HEADERS

1

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

29шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

72шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

4

88902

NUT,3/8"-16

74шт.

5

280736

NUT,5/16"-18, GC

41шт.

6

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

7

280631

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

6шт.

8

100-11200

SNAP RING,#200, Ext

2шт.

9

86547782

REFLECTOR,YELLOW

9шт.

10

48117826

Compression

SPRING

1шт.

11

48117827

Spacer

TUBE

6шт.

12

86508770

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

13

48117798

Control

BUSHING

4шт.

14

48117802

Shaft

WASHER

4шт.

15

48117838

Hex Socket

PLUG

2шт.

16

48117803

Lock

PIN

1шт.

17

48117762

LH

CONTROL

1шт.

18

NSS

NOT SOLD SEPARAT

LH Reel Assy, Standard

3шт.

19

NSS

NOT SOLD SEPARAT

LH Reel Assy, Offset

3шт.

20

48117791

End

SHIELD

6шт.

21

48117792

Idler

SHAFT

1шт.

22

48117793

Arm

CONTROL

1шт.

23

48117794

Anchor

PLATE

3шт.

24

48117795

Arm

CONTROL

5шт.

25

48117796

Spoke

SUPPORT

18шт.

26

48130749

Reel

TUBE

1шт.

27

48117786

Non Timing

MOUNT

1шт.

28

48117788

LH

MOUNT

1шт.

29

48117789

Spoke

SUPPORT

9шт.

30

48117790

Drive

SHAFT

1шт.
