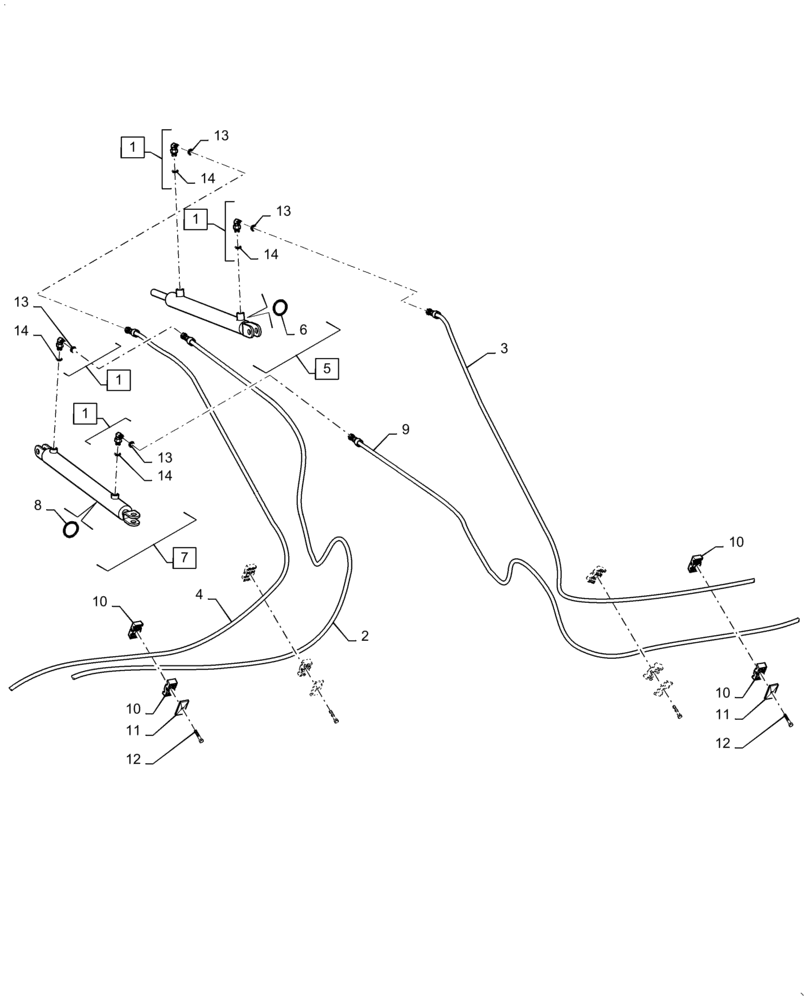

Запчасти Case IH DH403 (35.420.AB[04]) - DOUBLE KNIFE, SINGLE SWATH, SPLIT REEL, HYDRAULIC LIFT 40FT (35) - HYDRAULIC SYSTEMS

1

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 13 - 14

4шт.

4

73356508

HOSE

From Left Hand Reel Lift Cylinder Top Port

1шт.

5

73356204

HYDRAULIC CYLINDER

Incl 6

1шт.

Master Cylinder

1шт.

6

73356288

SERVICE KIT

1шт.

7

87486196

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 406.4mm Stroke

Incl 8

1шт.

Master Cylinder

1шт.

8

87487171

SEAL KIT

1шт.

10

87000149

CLAMP

8шт.

11

87053042

PLATE

4шт.

12

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

4шт.

13

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.
