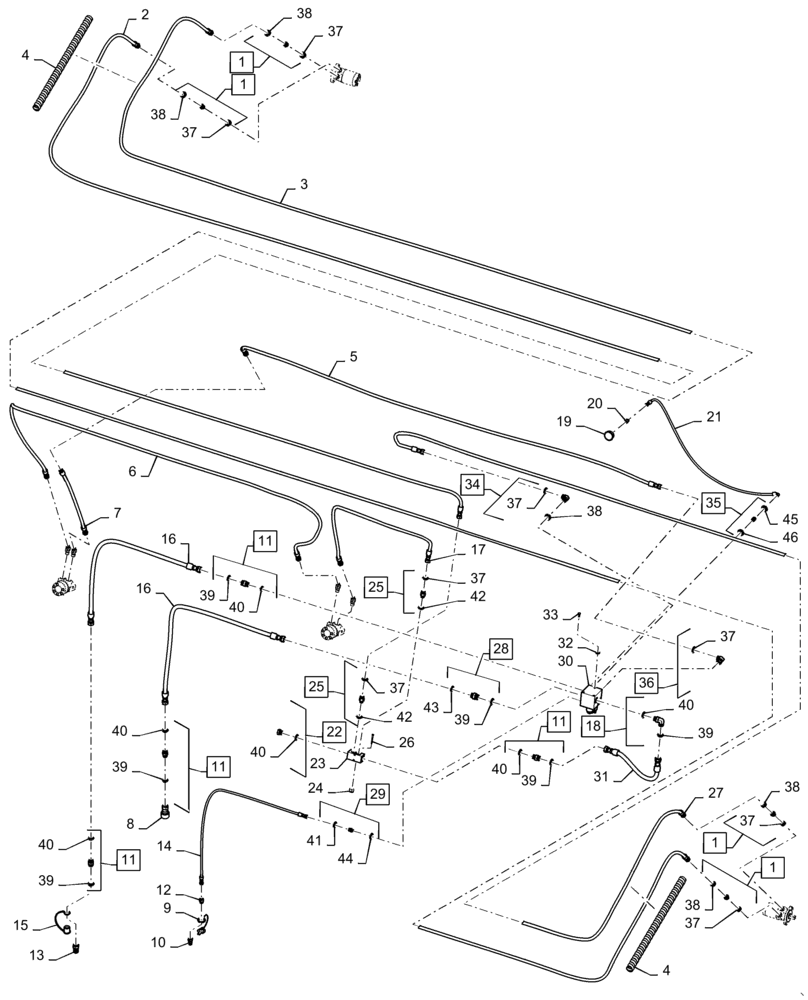

Запчасти Case IH DH403 (35.420.AB[01]) - SINGLE SWATH, SPLIT REEL, DRAPER DRIVE, HYDRAULICS 40FT (35) - HYDRAULIC SYSTEMS

1

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 37 - 38

5шт.

2

73356311

HOSE

1шт.

3

73356313

HOSE

From Return Port LH Reel Motor

1шт.

4

84391397

SLEEVE

2шт.

5

47458418

HYDRAULIC HOSE

To Pressure Port LH Draper Motor

1шт.

6

73356295

HOSE

From Return Port LH Draper Motor

1шт.

7

73356294

HOSE

1шт.

8

86564734

COUPLING

1шт.

9

86595687

PLUG

1шт.

10

84265250

QUICK MALE COUPLING

1шт.

11

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 39 - 40

4шт.

12

84139327

HYD CONNECTOR

1шт.

13

9820148

COUPLING,1-1/16" - 12

1шт.

14

73356208

HOSE

1шт.

15

86595689

CAP

1шт.

16

73356207

HOSE

2шт.

17

73356364

HOSE

1шт.

18

84139327

HYD CONNECTOR

Incl 38, 41

1шт.

19

73356206

GAUGE

1шт.

20

47369945

ADAPTER

1шт.

21

73356386

HOSE

1шт.

22

163410

PLUG,1-1/16" - 12 ORB

Incl 40

1шт.

23

73356198

MANIFOLD

1шт.

24

86532

LOCK NUT

2шт.

25

87351379

HYD CONNECTOR

Incl 37, 42

2шт.

26

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

27

73356309

HOSE

From Return Port RH Reel Motor

1шт.

28

87359470

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 39, 43

1шт.

29

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 41, 44

1шт.

30

73356289

MANIFOLD

1шт.

31

73356387

HOSE

1шт.

32

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

33

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

34

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

Incl 37 - 38

1шт.

35

87681202

HYD CONNECTOR,9/16" - 18 ORFS x 7/16" - 20 ORB

Incl 45 - 46

1шт.

36

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

Incl 37

1шт.

37

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

7шт.

38

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.

39

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

40

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

5шт.

41

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

42

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

43

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

44

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

45

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

46

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
