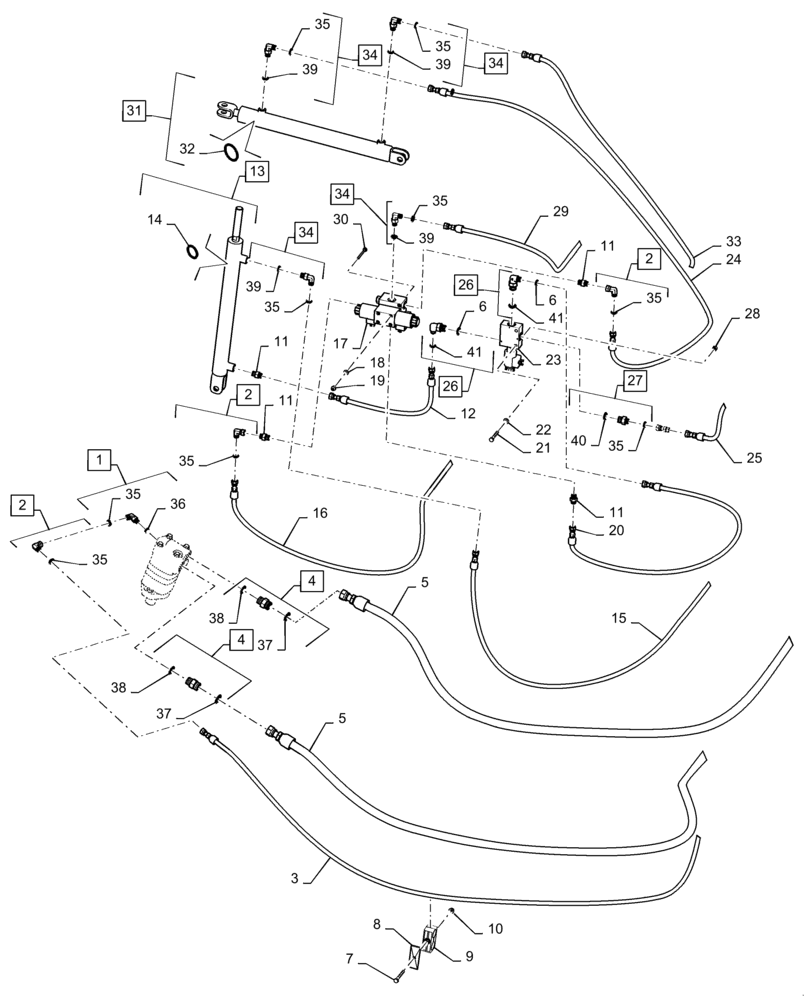

Запчасти Case IH DH403 (35.420.AB[01]) - DOUBLE KNIFE, SINGLE SWATH, SPLIT REEL, HYDRAULIC LIFT 40FT (35) - HYDRAULIC SYSTEMS

1

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 34, 41

4шт.

2

73356318

HOSE

1шт.

4

87486196

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 406.4mm Stroke

Incl 5

1шт.

Master Cylinder

1шт.

5

87487171

SEAL KIT

1шт.

6

73356363

HOSE

1шт.

7

73356514

HOSE

From Power Unit Line

1шт.

8

280736

NUT,5/16"-18, GC

2шт.

9

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 36, 42

2шт.

10

9827610

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/2", Gr 5

2шт.

11

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

4шт.

12

87057614

REMOTE CONTROL VALVE

1шт.

13

73356508

HOSE

To Center Reel Lift Cylinder Front Port

1шт.

14

73356204

HYDRAULIC CYLINDER

Incl 15

1шт.

Master Cylinder

1шт.

15

73356288

SERVICE KIT

1шт.

16

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 37, 41

1шт.

17

47536791

ORIFICE

1шт.

18

73356214

HOSE

1шт.

19

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

20

86532

LOCK NUT

2шт.

21

73356270

HOSE

To Right Hand FORE and AFT Cylinder Rear Port

1шт.

22

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

23

87362

WASHER,5/16" SAE

2шт.

24

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

25

87625027

CLAMP

1шт.

26

87625028

CLAMP

1шт.

27

73356292

HOSE

Pressure Line to Right Hand Knife Port

1шт.

28

73356291

HOSE

From "KNF" Port Knife Block

1шт.

29

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 38 - 39

2шт.

30

73356314

HOSE

To Return 2 Station Manifold (Center Near Left Hand Side)

1шт.

31

87681199

90 ELBOW

Incl 40 - 41

1шт.

32

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

Incl 41

1шт.

33

73356316

HOSE

To Return 4 Station Manifold (Right Hand Side)

1шт.

34

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

35

87387422

VALVE

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

37

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

38

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

39

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

40

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

41

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

7шт.

42

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

43

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

44

73356772

PROTECTOR

7" Hose Wrap (Not Shown)

1шт.

Apply to Ref 24 and 33

1шт.
