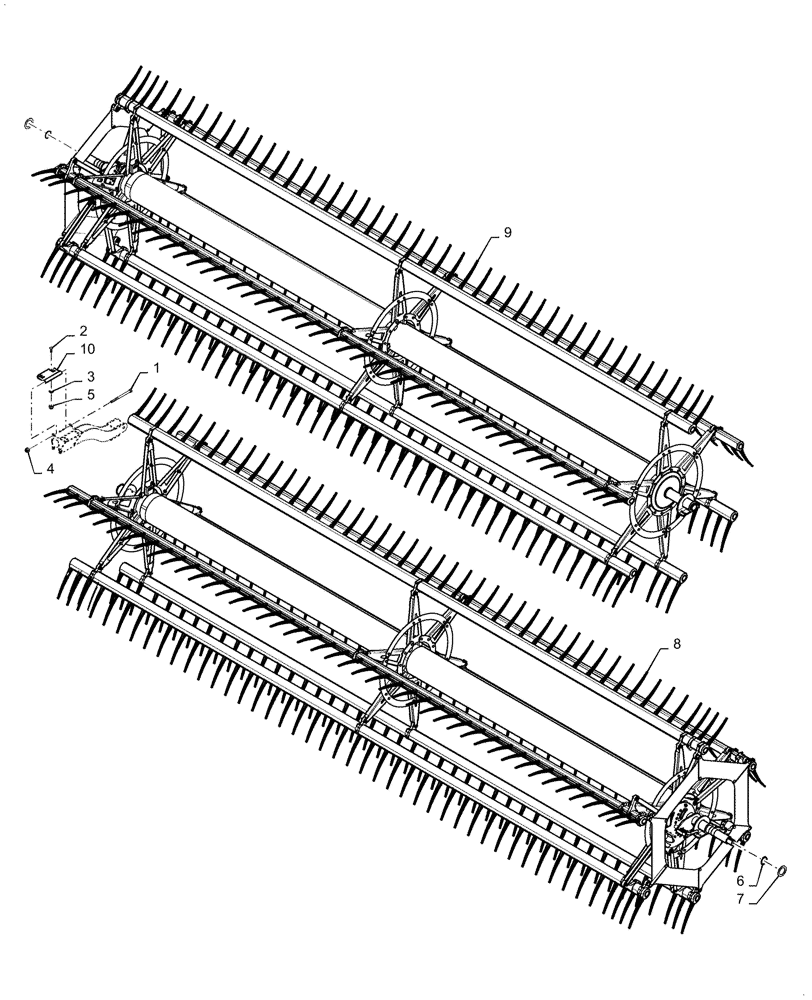

Запчасти Case IH DH363 (58.101.AF[03]) - SPLIT REEL 6-BAT, ASN YHZB14001 (58) - ATTACHMENTS/HEADERS

1

86505996

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

2

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

3

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

4

88871

NUT,1/2"-13, GC

1шт.

5

88902

NUT,3/8"-16

4шт.

6

100-11200

SNAP RING,#200, Ext

2шт.

7

48117802

Shaft

WASHER

2шт.

8

NSS

NOT SOLD SEPARAT

LH Reel Assy

1шт.

9

NSS

NOT SOLD SEPARAT

RH Reel Assy

1шт.

10

73356397

HINGE

Center

1шт.
