(58.101.AF[03]) - REEL, BUNDLE, HCC 36FT SINGLE

Запчасти Case IH DH363 (58.101.AF[03]) - REEL, BUNDLE, HCC 36FT SINGLE (58) - ATTACHMENTS/HEADERS

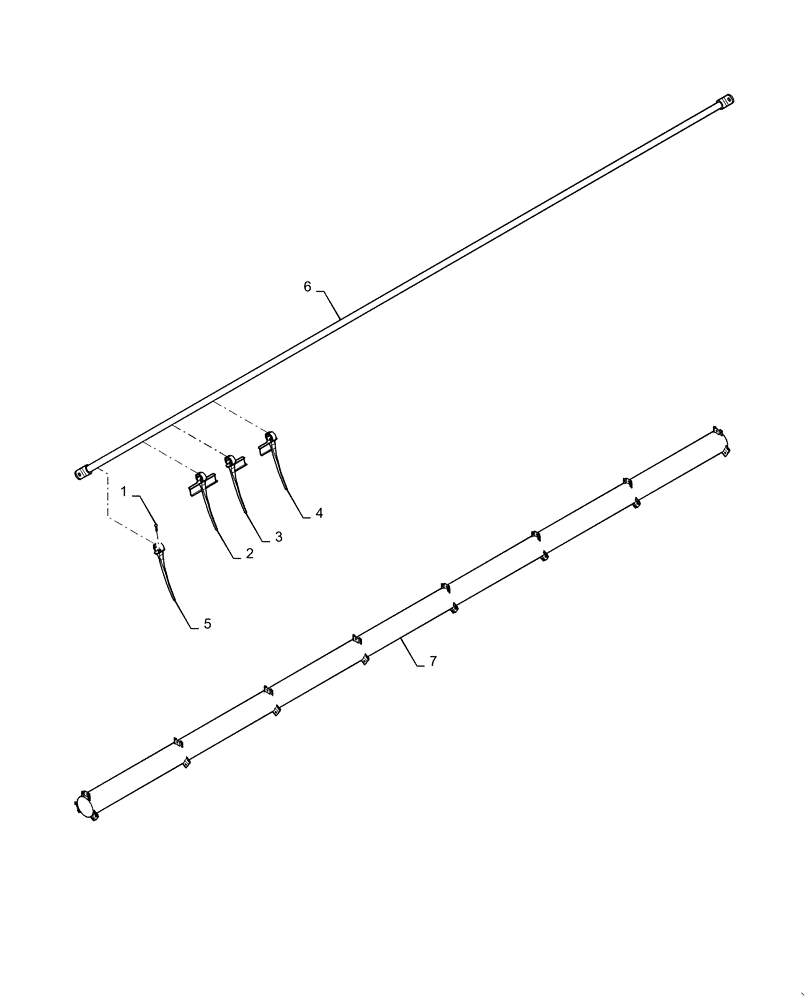

Схема запчастей Case IH DH363 - (58.101.AF[03]) - REEL, BUNDLE, HCC 36FT SINGLE (58) - ATTACHMENTS/HEADERS
4
2
7
3
6
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9842264

SELF-TAP SCREW,Hex, M3.5 x 1.3 x 16mm

441шт.

2

86608281

FINGER

Plastic, Full Bat

375шт.

3

86608284

FINGER

Plastic, RH Bat

21шт.

4

86608283

FINGER

Plastic, LH Bat

21шт.

5

86608282

FINGER

Plastic, No Bat

24шт.

6

87053171

TUBE

Bat, 36FT Single

6шт.

7

87523835

SHAFT ASSY.

Center

1шт.
