Запчасти Case IH DH363 (55.100.BP[02]) - WIRE HARNESS, 30FT, DOUBLE SWATH (55) - ELECTRICAL SYSTEMS

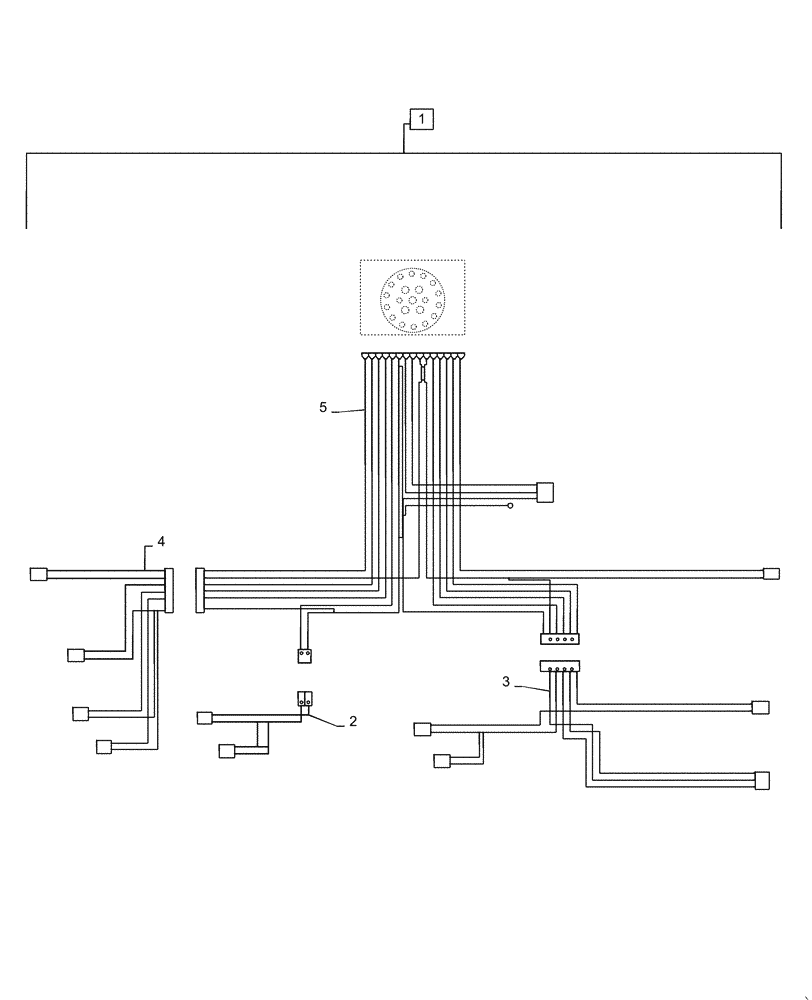

Схема запчастей Case IH DH363 - (55.100.BP[02]) - WIRE HARNESS, 30FT, DOUBLE SWATH (55) - ELECTRICAL SYSTEMS
3
1
2
5
4

Артикул

Название

Примечание

Количество

1

73356234

WIRE HARNESS

30ft, Double Swath, Incl 2 - 5

1шт.

2

73356223

WIRE HARNESS

Double Swath LH

1шт.

3

73356224

WIRE HARNESS

Double Swath, RH

1шт.

4

73356226

WIRE HARNESS

Common

1шт.

5

73356232

WIRE HARNESS

Main

1шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Harness End Connects to Valve End

1шт.

6

900364

TERMINAL CONNECTOR

Harness End Connects to Valve End

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

Harness End Connects to Valve End

1шт.

Выбрано товаров: 8
