(55.100.BP[01]) - WIRE HARNESS, 36FT, SINGLE SWATH

Запчасти Case IH DH363 (55.100.BP[01]) - WIRE HARNESS, 36FT, SINGLE SWATH (55) - ELECTRICAL SYSTEMS

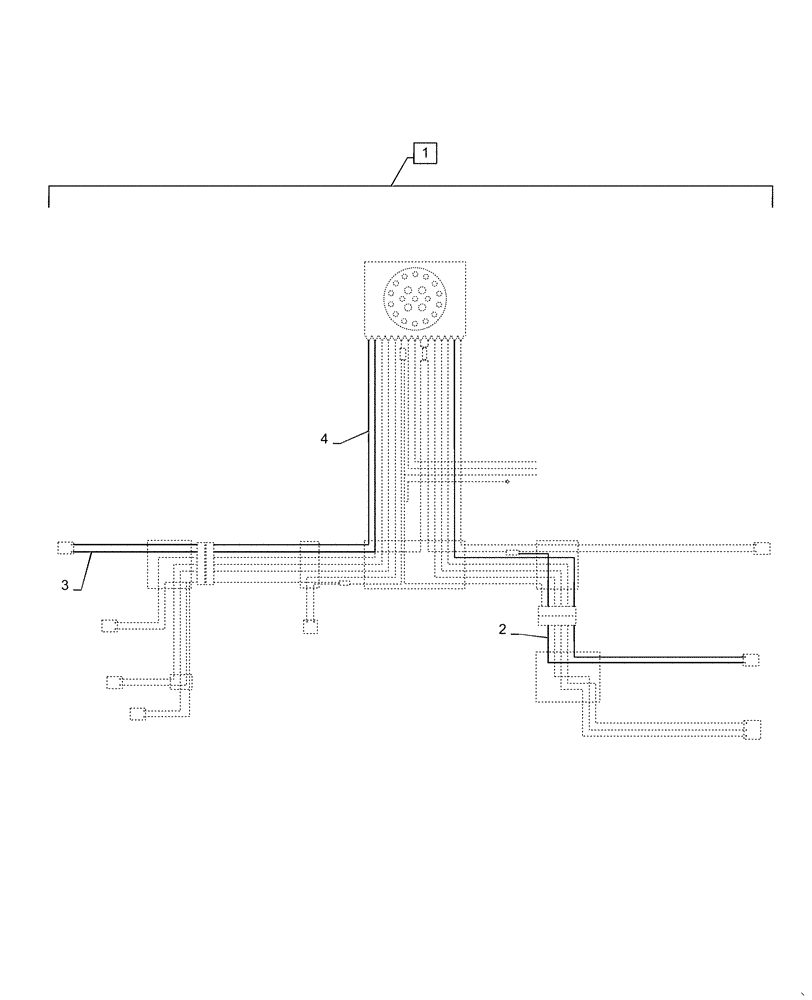

Схема запчастей Case IH DH363 - (55.100.BP[01]) - WIRE HARNESS, 36FT, SINGLE SWATH (55) - ELECTRICAL SYSTEMS
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

73356236

WIRE HARNESS

36ft, Single Swath, Incl 2 - 4

1шт.

2

73356225

WIRE HARNESS

Single Swath RH

1шт.

3

73356226

WIRE HARNESS

Common

1шт.

4

73356235

WIRE HARNESS

Main

1шт.

5

87695582

ELEC CONNECTOR,Female, 2 Pole

Harness End Connects to Valve End

1шт.

5

900364

TERMINAL CONNECTOR

Harness End Connects to Valve End

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Harness End Connects to Valve End

1шт.
