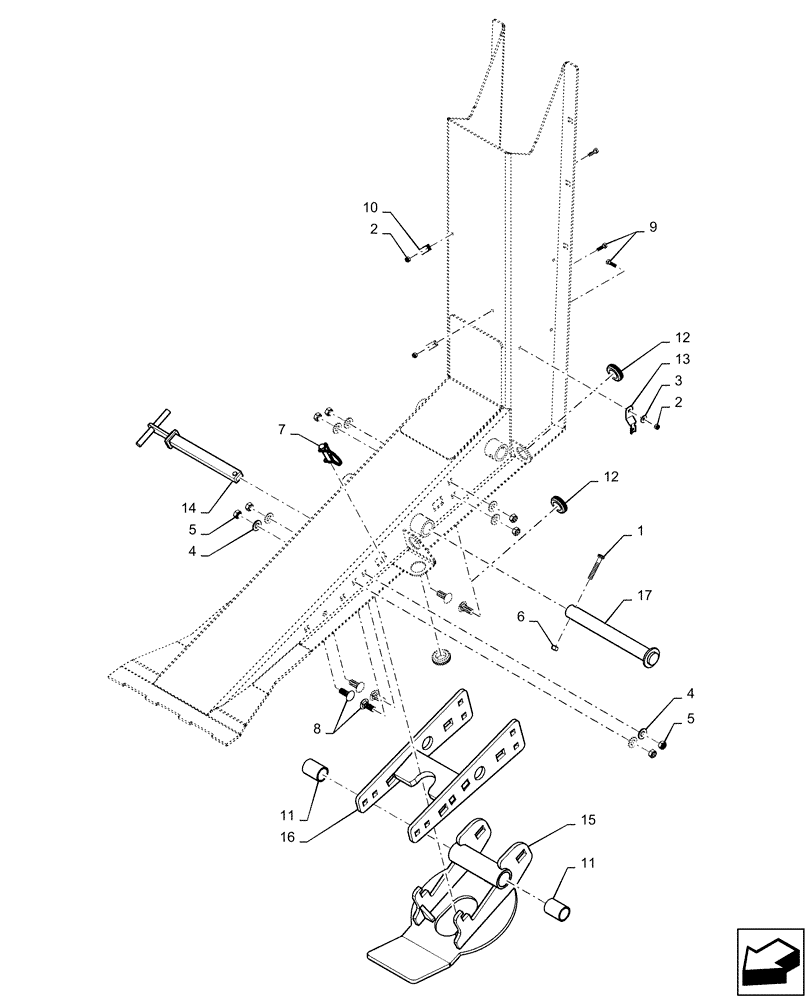

Запчасти Case IH DH363 (44.530.AA[03]) - STRUT, LOCK ASSY (44) - WHEELS

1

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

2

86532

LOCK NUT

3шт.

3

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

4

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

5

88871

NUT,1/2"-13, GC

8шт.

6

88902

NUT,3/8"-16

1шт.

7

86559645

LOCK PIN

1шт.

8

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

8шт.

9

88832

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

10

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

11

73356030

BUSHING

2шт.

12

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

3шт.

13

73356325

CLIP

Plated

1шт.

14

73356373

STRUT

Pin Receiver

1шт.

15

73356380

PIVOT

1шт.

16

73356381

STRUT

Lock

1шт.

17

73356041

PIN

1шт.
