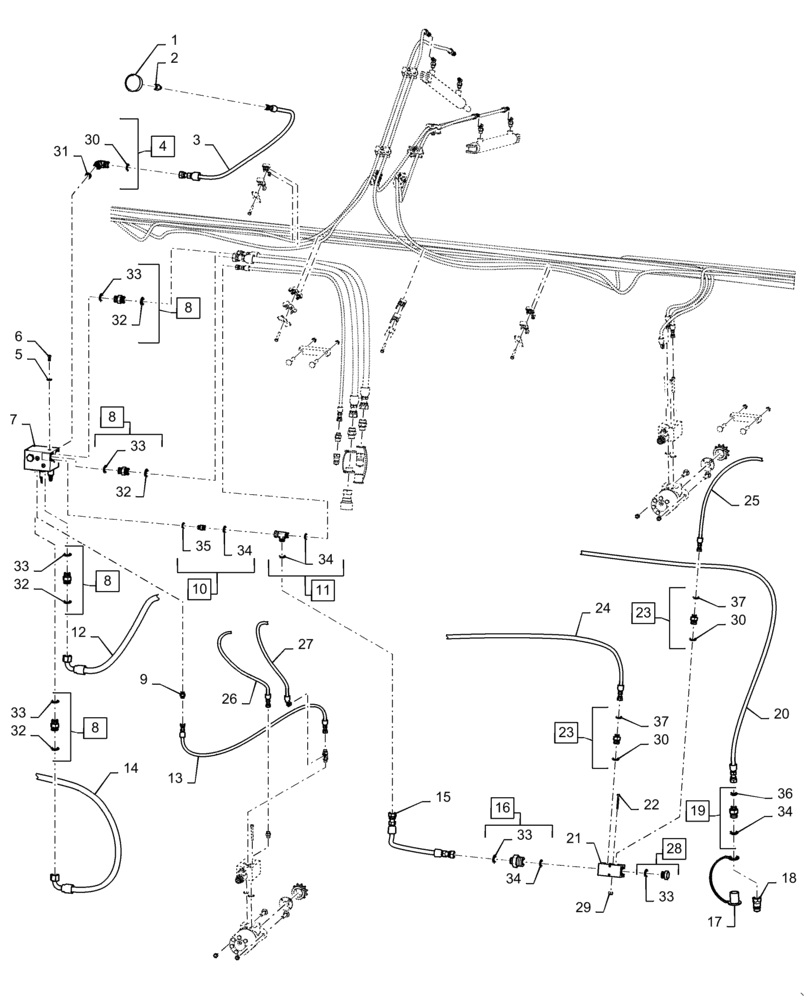

Запчасти Case IH DH363 (35.420.AB [03]) - DOUBLE KNIFE, DOUBLE SWATH, SPLIT REEL, HYDRAULIC LIFT 36FT (35) - HYDRAULIC SYSTEMS

1

73356206

GAUGE

1шт.

2

47369945

ADAPTER

1шт.

3

73356209

HOSE

1шт.

4

87681199

90 ELBOW

Incl 30 - 31

3шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

6

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

7

73356200

MANIFOLD

Knife Block

1шт.

8

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 32 - 33

4шт.

9

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

1шт.

10

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 34 - 35

1шт.

11

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Incl 34

1шт.

12

73356258

HOSE

From Return Line 4 Station Manifold

1шт.

13

73356385

HOSE

From "PR" Port to "P" Port LH Deck Shift Valve

1шт.

14

73356255

HOSE

Pressure Line to Left Hand Knife Port

1шт.

15

73356220

HOSE

1шт.

16

47539754

HYD CONNECTOR

Incl 33 - 34

1шт.

17

86564910

DUST CAP

1шт.

18

84265250

QUICK MALE COUPLING

1шт.

19

84139327

HYD CONNECTOR

Incl 34, 36

1шт.

20

73356510

HOSE

To Selector Valve "2" Port

1шт.

21

73356198

MANIFOLD

2 Station Manifold

1шт.

22

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

23

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 30, 37

2шт.

24

73356281

HOSE

From Left Hand Case Drain Port

1шт.

25

73356262

HOSE

From Right Hand Case Drain Port

1шт.

26

73356218

HOSE

To "P" Port RH Deck Shift Valve

1шт.

27

73356519

HOSE

To "T" Port RH Deck Shift Valve

1шт.

28

163410

PLUG,1-1/16" - 12 ORB

Incl 33

1шт.

29

86532

LOCK NUT

2шт.

30

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5шт.

31

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

33

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

8шт.

34

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

36

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
