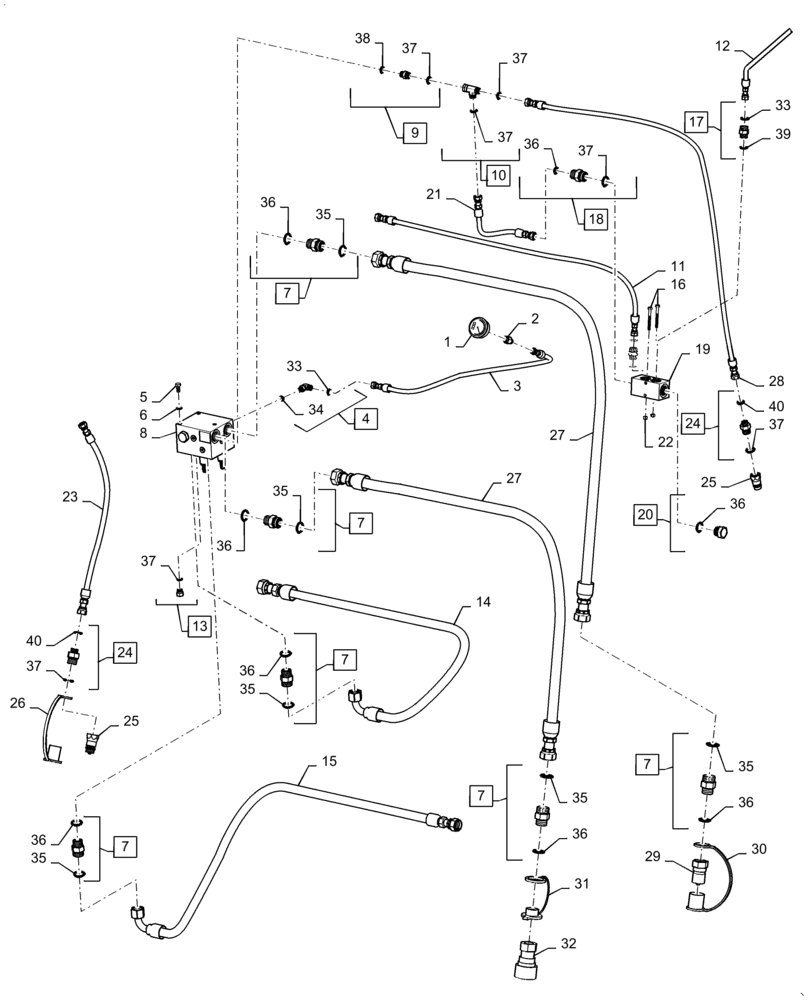

Запчасти Case IH DH363 (35.420.AB[03]) - DOUBLE KNIFE, SINGLE SWATH, SPLIT REEL, HYDRAULIC LIFT 36FT (35) - HYDRAULIC SYSTEMS

1

73356206

GAUGE

1шт.

2

47369945

ADAPTER

1шт.

3

73356209

HOSE

1шт.

4

87681199

90 ELBOW

Incl 33 - 34

1шт.

5

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 35 - 36

6шт.

8

73356200

MANIFOLD

Knife Block

1шт.

9

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 37 - 38

1шт.

10

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

Incl 37

1шт.

11

73356281

HOSE

From Left Hand Case Drain Port

1шт.

12

73356262

HOSE

From Right Hand Case Drain Port

1шт.

13

9843614

PLUG

Incl 37

1шт.

14

73356255

HOSE

Pressure Line to Left Hand Knife Port

1шт.

15

73356258

HOSE

From Return Line 4 Station Manifold

1шт.

16

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

17

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 33, 39

2шт.

18

47539754

HYD CONNECTOR

Incl 36 - 37

1шт.

19

73356198

MANIFOLD

2 Station Manifold

1шт.

20

163410

PLUG,1-1/16" - 12 ORB

Incl 36

1шт.

21

73356220

HOSE

1шт.

22

86532

LOCK NUT

2шт.

23

73356510

HOSE

To Selector Valve "2" Port

1шт.

24

84139327

HYD CONNECTOR

Incl 37, 40

2шт.

25

84265250

QUICK MALE COUPLING

2шт.

26

86564910

DUST CAP

1шт.

27

73356207

HOSE

2шт.

28

73356208

HOSE

1шт.

29

9820148

COUPLING,1-1/16" - 12

1шт.

30

86595689

CAP

1шт.

31

86595687

PLUG

1шт.

32

86564734

COUPLING

1шт.

33

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

34

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

35

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

36

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

7шт.

37

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

7шт.

38

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

40

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
