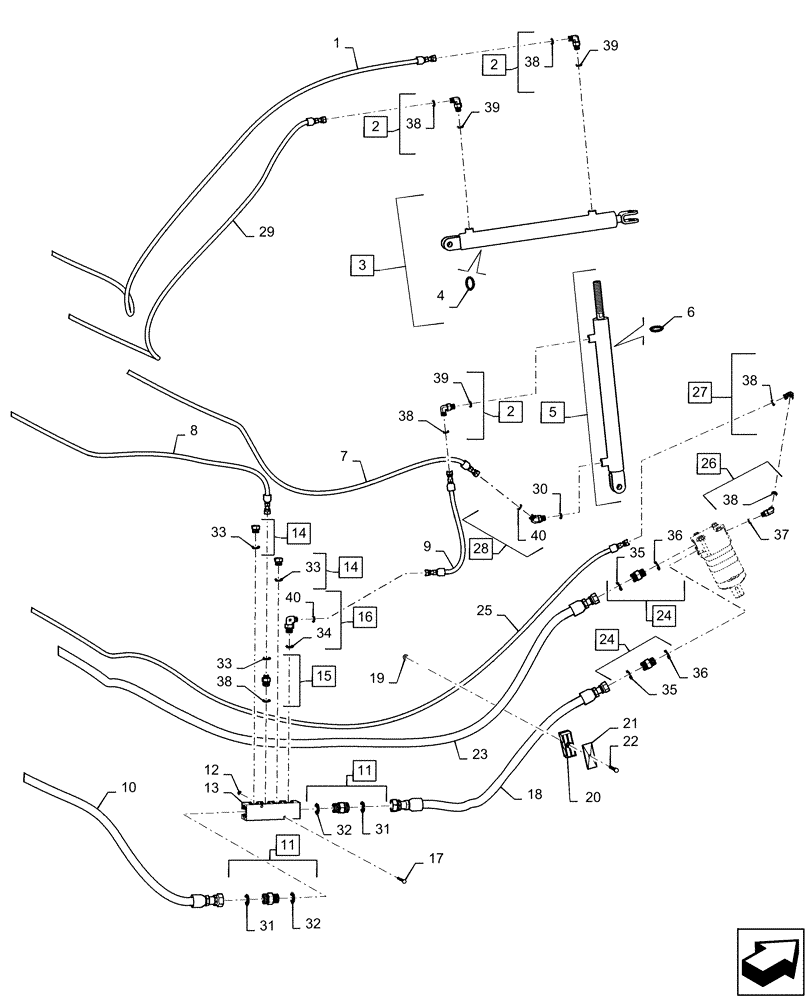

Запчасти Case IH DH363 (35.420.AB[02]) - DOUBLE KNIFE, SINGLE SWATH, SPLIT REEL, HYDRAULIC LIFT 36FT (35) - HYDRAULIC SYSTEMS

1

73356522

HOSE

From Center FORE and AFT Cylinder Rear Port

1шт.

2

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 38 - 39

3шт.

3

87486196

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 406.4mm Stroke

Incl 3, RH FORE and AFT Cylinder

1шт.

Master Cylinder

1шт.

4

87487171

SEAL KIT

1шт.

5

73356204

HYDRAULIC CYLINDER

Incl 6

1шт.

Master Cylinder

1шт.

6

73356288

SERVICE KIT

1шт.

7

73356522

HOSE

From Center Reel Lift Cylinder Rear Port

1шт.

8

73356284

HOSE

From FORE and AFT Valve "T" Port

1шт.

9

73356214

HOSE

1шт.

10

73356258

HOSE

Return Line to Knife Block "Ret B" Port

1шт.

11

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 31 - 32

2шт.

12

86532

LOCK NUT

2шт.

13

73356199

MANIFOLD

Manifold 4 Station

1шт.

14

214389

PLUG,3/4" - 16 ORB

Incl 33

2шт.

15

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 33, 38

1шт.

16

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 40 - 41

1шт.

17

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

18

47458419

HYDRAULIC HOSE

From Return Line Left Hand Knife Port

1шт.

19

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

20

87625027

CLAMP

1шт.

21

87625028

CLAMP

1шт.

22

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

23

73356261

HOSE

1шт.

24

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 35 - 36

2шт.

25

73356262

HOSE

To Return 2 Station Manifold (Center Near Left Hand Side)

1шт.

26

87681199

90 ELBOW

Incl 37 - 38

1шт.

27

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

Incl 38

1шт.

28

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 30, 40

1шт.

29

73356269

HOSE

From FORE and AFT Valve "A" Port

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

32

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

33

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

36

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

38

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

40

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.
