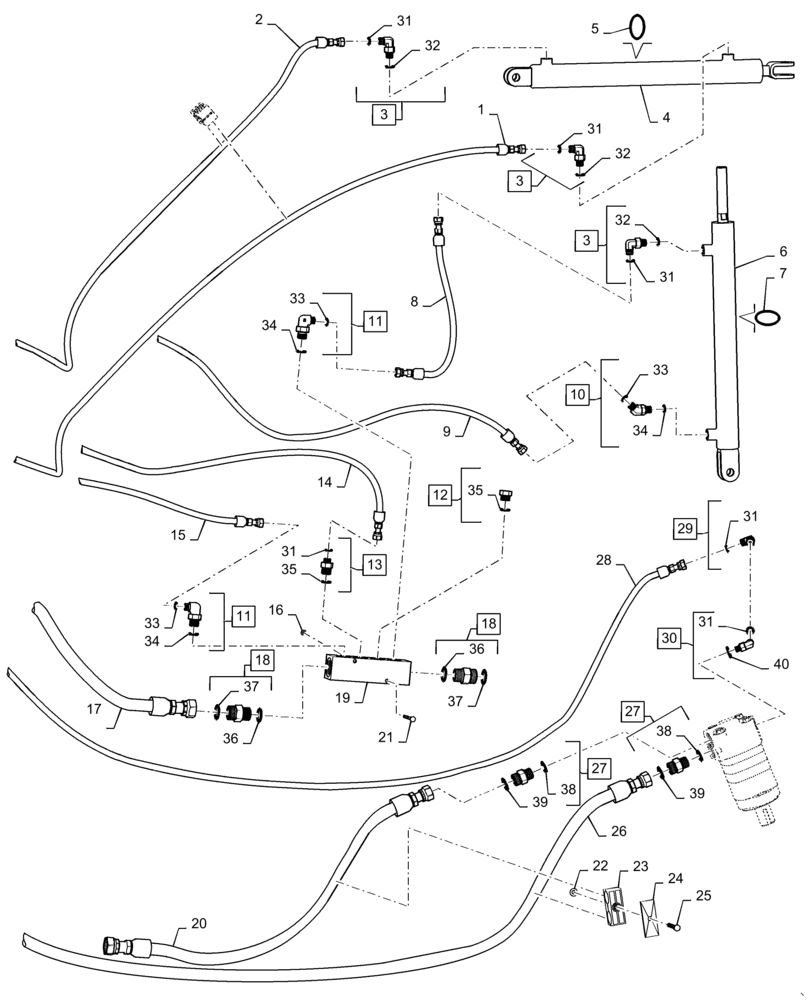

Запчасти Case IH DH363 (35.420.AB[02]) - DOUBLE KNIFE, DOUBLE SWATH, SPLIT REEL, HYDRAULIC LIFT 36FT (35) - HYDRAULIC SYSTEMS

1

73356522

HOSE

From Center FORE and AFT Cylinder Rear Port

1шт.

2

73356269

HOSE

From FORE and AFT Valve "A" Port

1шт.

3

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 31 - 32

3шт.

4

87486196

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod, 406.4mm Stroke

Incl 5, RH FORE and AFT Cylinder

1шт.

Master Cylinder

1шт.

5

87487171

SEAL KIT

1шт.

6

73356204

HYDRAULIC CYLINDER

Incl 7

1шт.

Master Cylinder

1шт.

7

73356288

SERVICE KIT

1шт.

8

73356214

HOSE

1шт.

9

73356523

HOSE

From Center Reel Lift Cylinder Rear Port

1шт.

10

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 33 - 34

1шт.

11

201-325

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 33 - 34

2шт.

12

214389

PLUG,3/4" - 16 ORB

Incl 35

1шт.

13

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl 31, 35

1шт.

14

73356284

HOSE

From FORE and AFT Valve "T" Port

1шт.

15

73356278

HOSE

From "P" Port RH Deck Shift Valve

1шт.

16

86532

LOCK NUT

2шт.

17

73356258

HOSE

Return Line to Knife Block "Ret B" Port

1шт.

18

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 36 - 37

2шт.

19

73356199

MANIFOLD

Manifold 4 Station

1шт.

20

47458419

HYDRAULIC HOSE

1шт.

21

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

22

9823743

FLANGE NUT,Flg, 5/16"-18

1шт.

23

87625027

CLAMP

1шт.

24

87625028

CLAMP

1шт.

25

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

26

73356261

HOSE

From Return Line Left Hand Knife Port

1шт.

27

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

Incl 38 - 39

2шт.

28

73356262

HOSE

To Return 2 Station Manifold (Center Near Lewft Hand Side)

1шт.

29

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

Incl 31

1шт.

30

87681199

90 ELBOW

Incl 31, 40

1шт.

31

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

35

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

36

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

38

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

40

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
